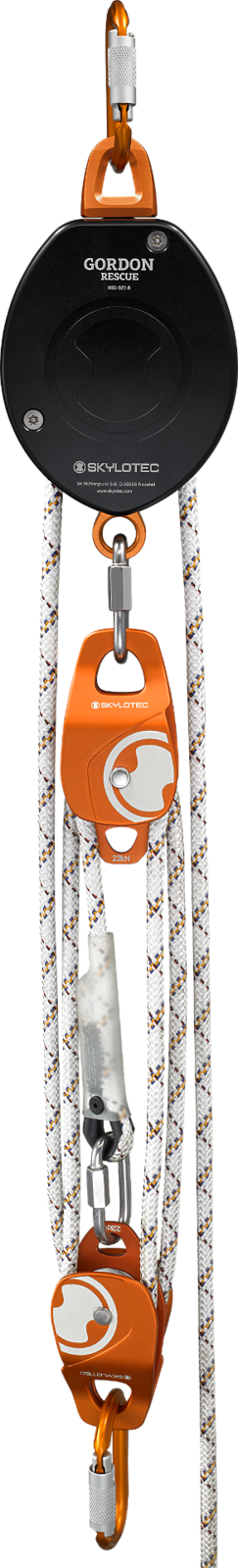

Self-blocking pulley system with GORDON RESCUE in the 1:5 configuration. This set includes the GORDON RESCUE fall arrester device and the corresponding hardware. The SUPER STATIC 10.5 static rope (item no. L-0741) with sewn eyelets should also be ordered in the required length. The required length can be calculated from the maximum lifting height multiplied by the required ratio (5 in this case). With this pulley system, for example, a lifting height of 10 metres will require a 50 metre long rope.
All GORDON PULLEY SYSTEMS can be loaded with up to 260 kg. Only if the basic unit is used as a fall arrest device according to EN 360, the indication of 140 kg on the unit is considered as maximum user weight
• ART.NR.: A-120-5
• GTIN: 4030281272724
• E-CLASS NUMBER: 40-02-01-03
• CUSTOMS TARIFF NUMBER: 84798997
• GROSS WEIGHT: 3.15 kg
• NET WEIGHT: 3.15 kg
• MATERIAL: Aluminium, Steel
• APPLICATION AREAS: Various
• COLOUR: Black
• MINIMUM TEMPERATURE: -20 °C
• MAXIMUM TEMPERATURE: 60 °C
• USABLE IN SEAL PAC: No
• EDGE APPROVED: No
• MAXIMUM LIFETIME: 20 years
• MAXIMUM NUMBER OF PERSONS: 1
• MAXIMUM USER WEIGHT VERTICAL: 140.00 kg
• MINIMUM USER WEIGHT: 5.00 kg
• SERIAL NUMBER MANDATORY:Yes
SET Components:
1 x GORDON RESCUE: HSG-020-R
2 x ORBITER T: H-276
2 x OVAL LINK 8 VA: MAT-H-048-8-VA
2 x OVALOY TRI: MAT-H-069
1 x LIFT FIX R" MAT-H-064-R
1 x BA-Carabiner: MAT-BA-0071-05
1 x BA-Part 1 General Manual: MAT-BA-0140-02
Specifications
Skylotec GORDON PULLEY SYSTEM 5:1
Part Number: A-120-5 Weight: 7.6 lbs.
