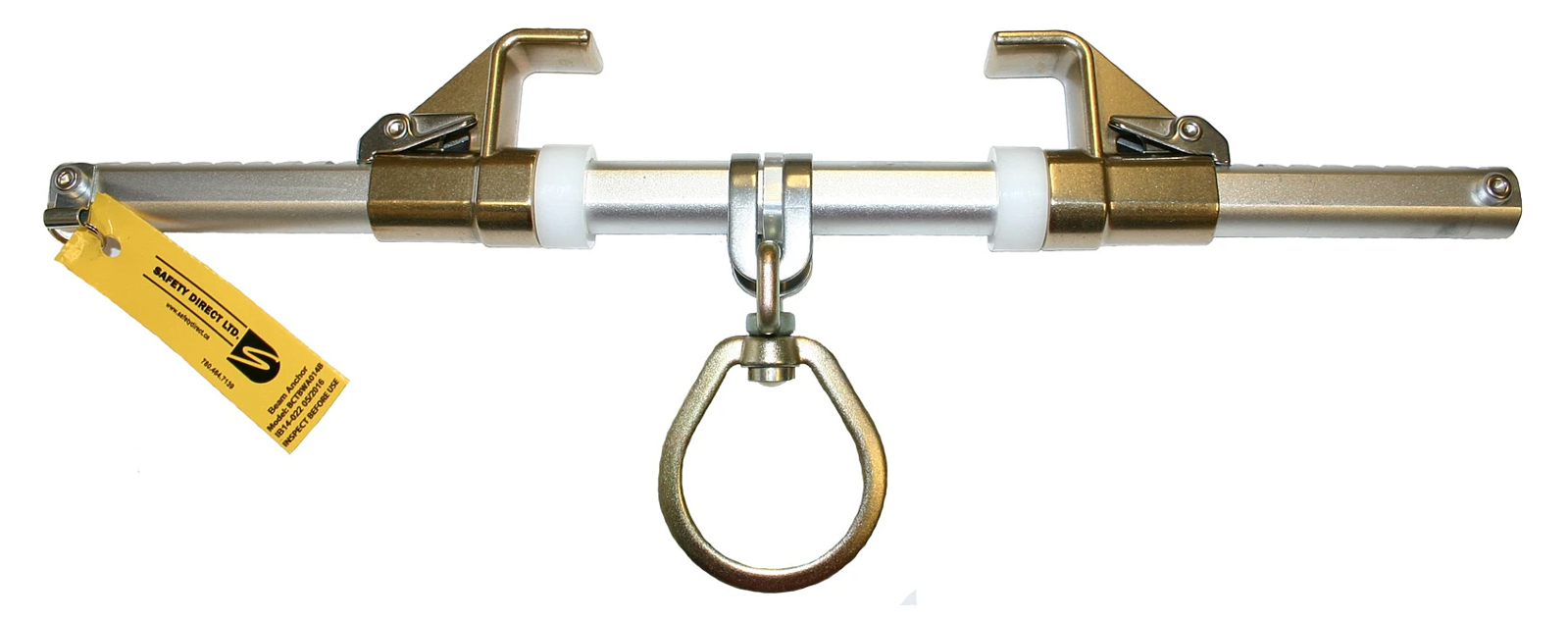

Safety Direct Ltd. Sliding Beam Anchor

Safety Direct's SLIDING BEAM ANCHOR is easy to use, removable, and reusable. This anchor is designed to easily glide along the I-beam while trailing the worker. Can be used at overhead and foot level heights. The 360° rotating D-ring is centered on the anchorage connector for balanced sliding on beam flanges.

Features:
•Designed for use in fall arrest systems, work positioning, rope access, or rescue applications
•Easily slides
•Made from light aluminum alloy
•Bronze Clamps
•Zinc plated D-ring that rotates 360°
•Stainless Steel D-Ring Bracket
•Easy to install without the need of tools;
•Adjustable in width from 3.5 to 14 inches (9 to 35 cm)
•Beam Flange Thickness: .25 to 1.25 inches (.64 cm to 3.18 cm)
•5000 lb. (22kN) breaking load
•Weight: 3.9 lb.
•Capacity 1 worker including clothing and equipment 310 lbs. (140 kg.)
•ANSI Z359.18, ANSI Z359.7, OSHA 1910.66, OSHA 1926.503, EN 795:2012 compliant

Specifications

Product Name

Product URL

Name *

Email *

Phone *

Question

Write Review

Safety Direct Ltd. Sliding Beam Anchor

$409.00 CAD

Product Details:

Part Number: BCTBWA014B

Size:

3.5" - 14 " - MBS: 5000 lbs (22 kN)

(size - strength)

Material:

Aluminum, Steel

Option 3:

n/a

Option 4:

n/a

Option 5:

n/a

Options:

Unit Pricing

Quantity: *

- +

Total: $ 409.00

Part Number: BCTBWA014B Weight: 3.9 lbs.
