THE EDGE90° PARAPET CLAMP

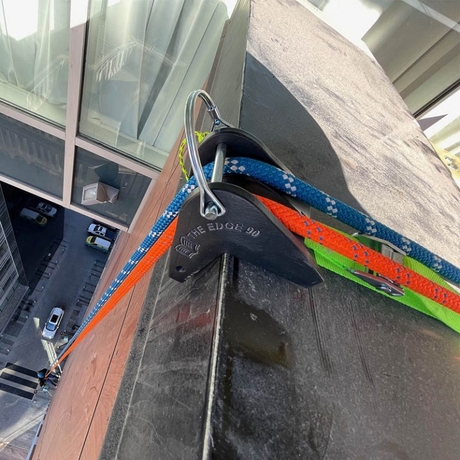

The Edge90° Parapet Clamp is designed for use on varying sizes, depths and materials of parapets and on other 90° edges, commonly found on high-rise buildings and on industrial work sites. It should only be used it is not possible to “remove” or “avoid” a hazard.
The Edge may be used with product diameters of up to 13mm.
(The Edge “Rope Channel” dia. is 15mm)
The Edge should not be used if the expected load on the Rope exceeds 250kg regardless of the entry angle into the device.
The Edge, and all of its parts is never to be considered, or used as an anchoring device or an “anchorage” itself, and therefore, does not hold a rating.
Designed for the Rope Access & the Rope Rescue industry, The Edge90° Parapet Clamp saves time, effort, wear on your ropes and makes the edge negotiation safer and more efficient!
100% Made in Canada.
SPECIFICATIONS:
Material – PA 12 Nylon
PA 12 NYLON PROPERTIES :
MATERIAL: PA12 Nylon
HEAT DEFLECTION: 175°C
MELTING POINT: 187°C
LOW TEMPERATURE LIMIT: -40°C
TENSILE STRENGTH: 48 Mpa / 6960 psi
ELONGATION: 20%
DENSITY: 1.01 g/cm3
IMPACT RESISTANT: to 1247 flbs per sq inch
PA12 Nylon holds excellent chemical resistance to oils, greases, aliphatic hydrocarbons & alkalis. However, should be inspected and removed from service in the event of contamination.
Specifications
RopesEdge THE EDGE90°
Part Number: AATE90 Weight: 2.2 lbs.
