THE EDGE – FOR WALKWAY KICK PLATE

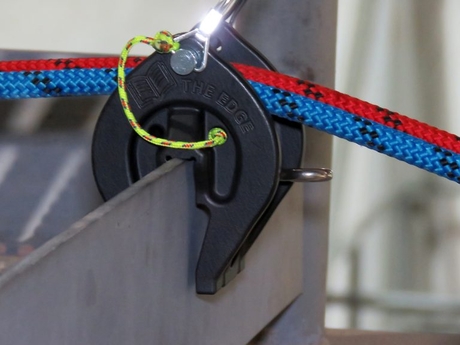

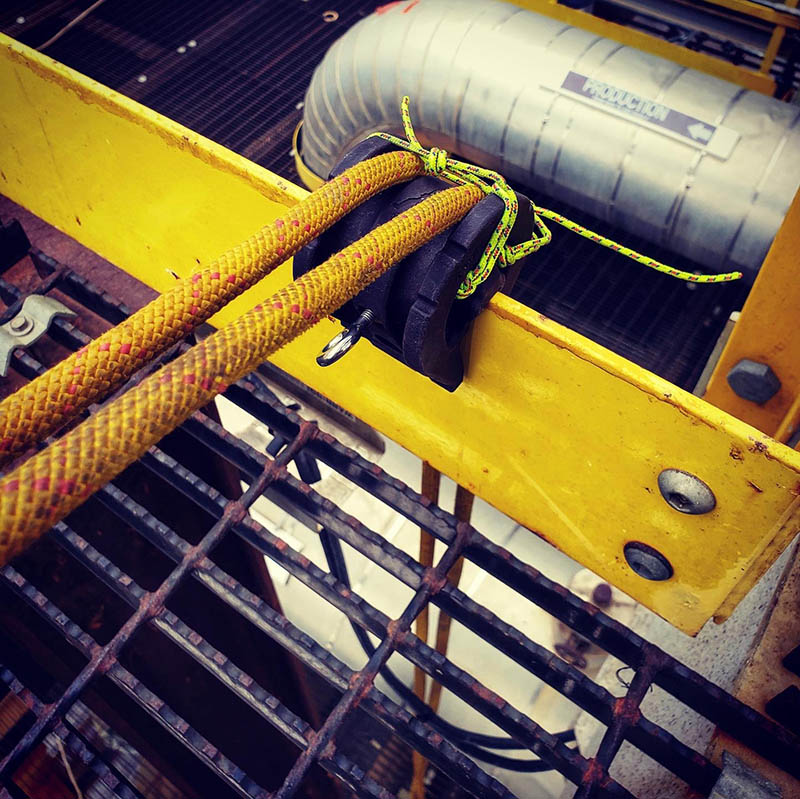

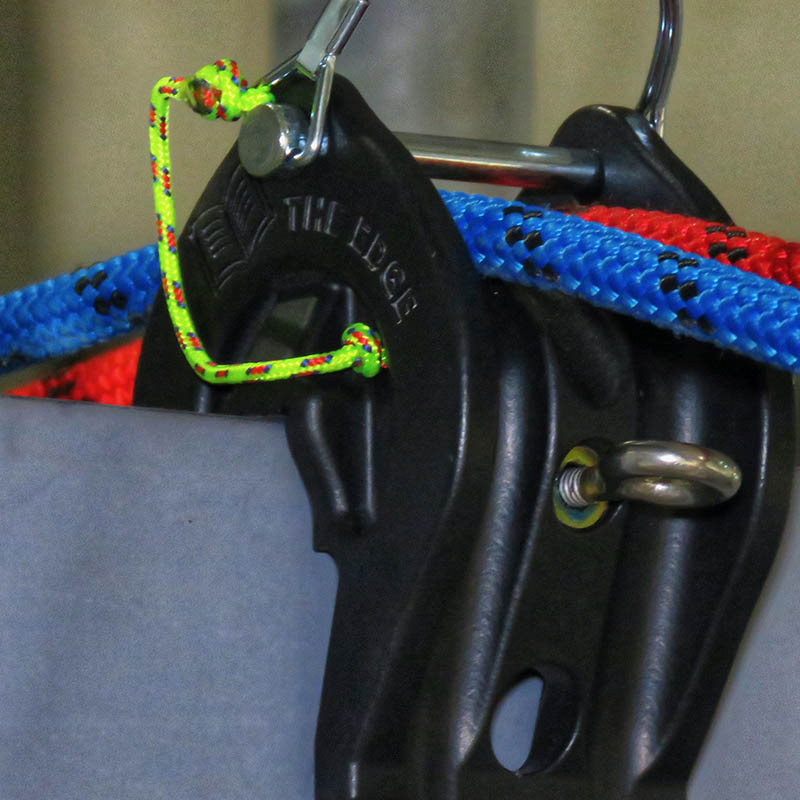

The Edge sharp edge management system is designed for use on varying sizes & depths of “Kick-Plate” found on industrial & commercial work sites.
The Edge has been designed for use with Wire Rope Rigging Slings, Nylon & Natural fiber Ropes as a physical barrier to assist in the protection of the slings or rope from coming into contact with the sharp edges of the Kick-Plate during normal use.
When rigging steel rope slings over kick-plate, they are often damaged due to acute “kinking”. The Edge device mitigates this problem by offering a rounded surfaces to rest upon.
The Edge may be used with product diameters of up to 13mm.
(The Edge “Rope Channel” dia. is 15mm)
The Edge should not be used if the expected load on the Rope exceeds 250kg regardless of the entry angle into the device.
The Edge, and all of its parts is never to be considered, or used as an anchoring device or an “anchorage” itself, and therefore, does not hold a rating.
100% Made in Canada
SPECIFICATIONS:
Material – PA 12 Nylon
PA 12 NYLON PROPERTIES :
MELTING POINT: 175° C
TENSILE STRENGTH: 48 MPa
ELONGATION: approx 15 – 20%
IMPACT RESISTANT: to 1247 flbs/ sq. inch
LOW TEMP LIMIT: -40°C in short term duration
PA12 Nylon holds excellent chemical resistance to oils, greases, aliphatic hydrocarbons & alkalis. However, should be inspected and removed from service in the event of contamination.
Specifications
RopesEdge THE EDGE
Part Number: AATE-1002 Weight: 2.2 lbs.
