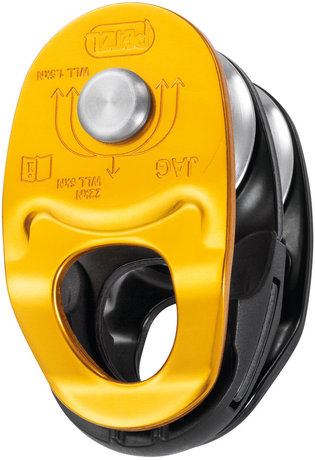

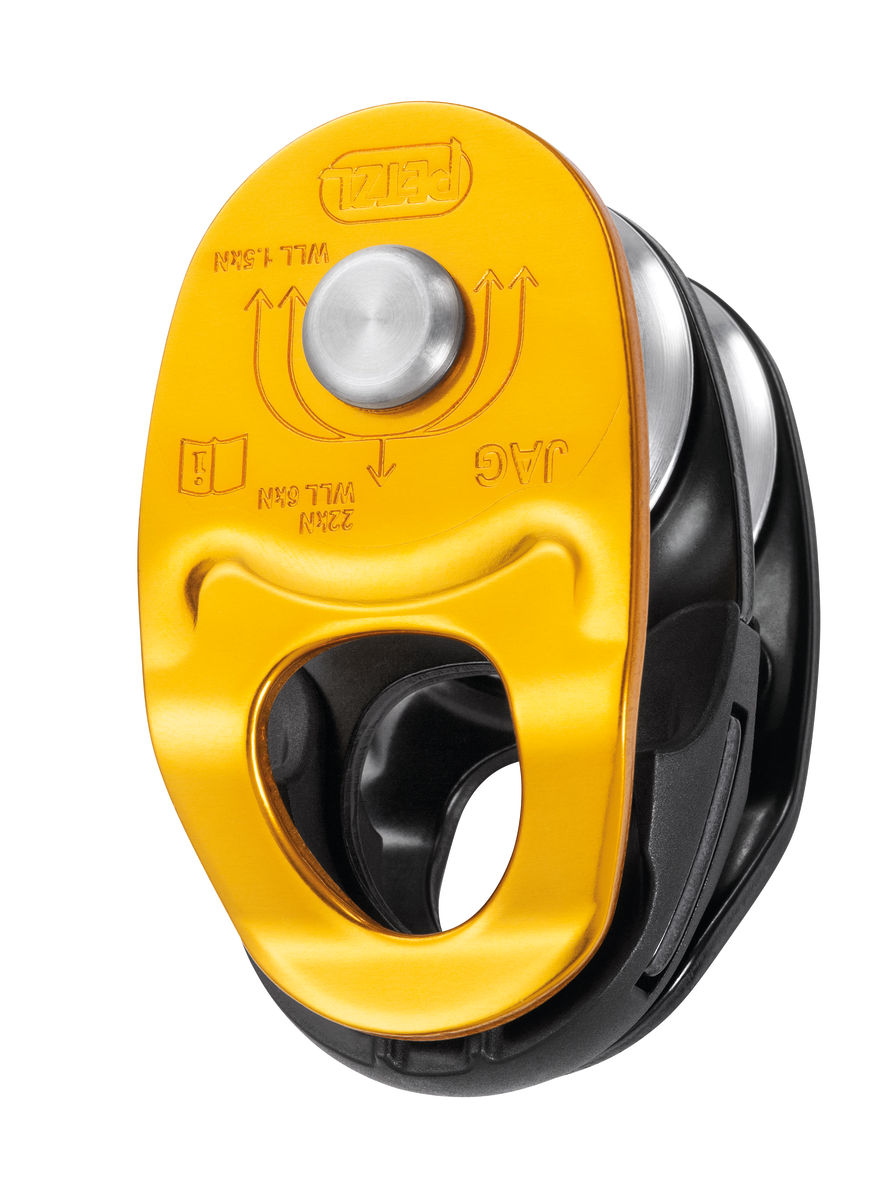

High-efficiency double pulley

The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Detailed description:
• Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
• Sheaves mounted on sealed ball bearings for excellent efficiency

Specifications:
• Weight: 120 g
• Certification(s): CE EN 12278, NFPA 2500 Technical Use
• Material(s): aluminum, nylon
• Min. rope diameter: 8 mm
• Max. rope diameter: 11 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 25 mm
• Maximum working load: 2 × 1,5 kN × 2 = 6 kN
• Breaking strength: 2 × 4 kN × 2 = 16 kN
• Efficiency: 91 %

Specifications

Product Name

Product URL

Name *

Email *

Phone *

Question

Write Review

Petzl JAG

$124.95 CAD

Product Details:

Part Number: P45

Rope Capacity / Size:

8 to 11 mm - 3596 lbs

(rope capacity / size - strength)

Color:

Yellow/Black

Material:

Aluminum

Sheave Types:

Double

End Type:

Single

Options:

Unit Pricing

Quantity: *

- +

Total: $ 124.95

Industry:Safety/Rescue, Arborist, Industrial, Adventure Park, Government/Tactical, Theatrical

Part Number: P45 Weight: 0.3 lbs.
