Standard steel anchor for interior use or non-permanent installations (pack of 20)

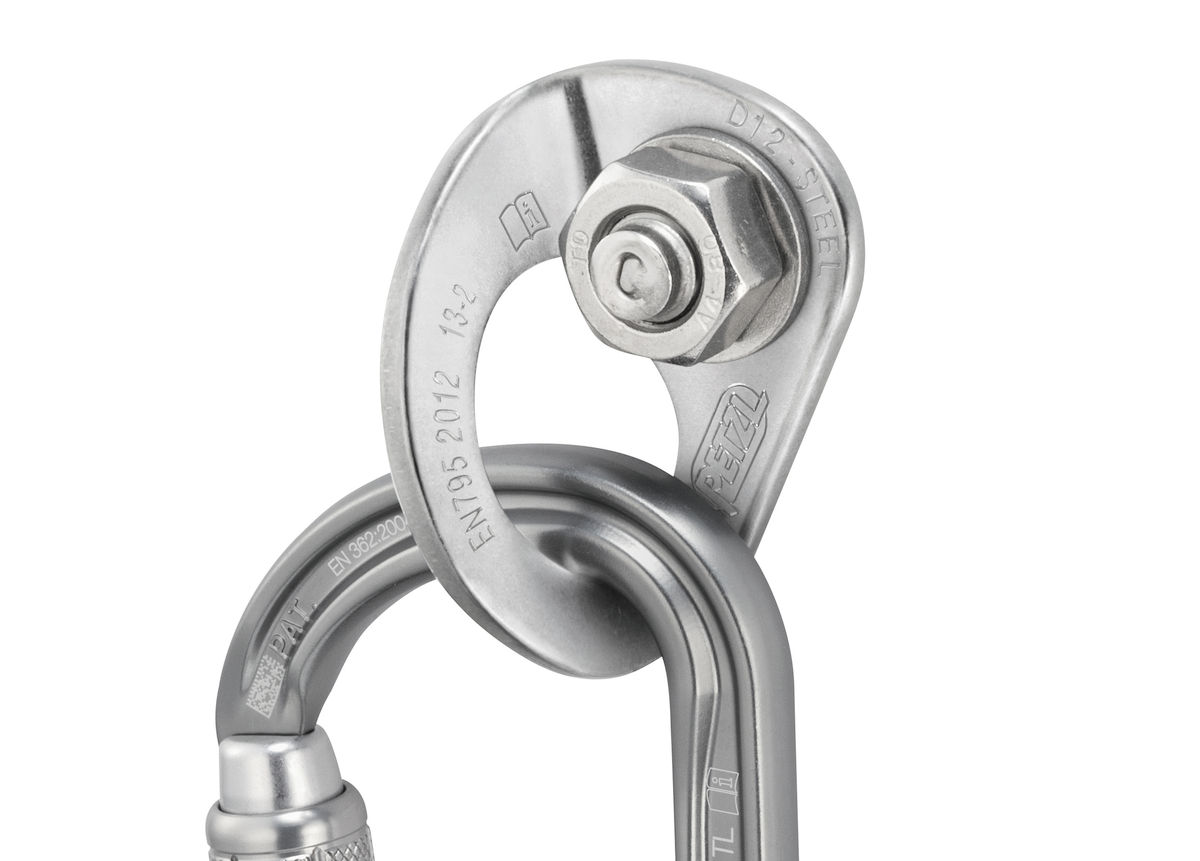

The COEUR BOLT STEEL is a standard steel anchor made up of a COEUR STEEL hanger, a bolt, and a nut. It is designed for interior use or non-permanent installations. It is available in 10 and 12 mm diameters.
Detailed description:
• Economical choice for low-corrosion environments
• Assembly composed of a COEUR STEEL hanger, a bolt, and a nut
• Easy to clip:

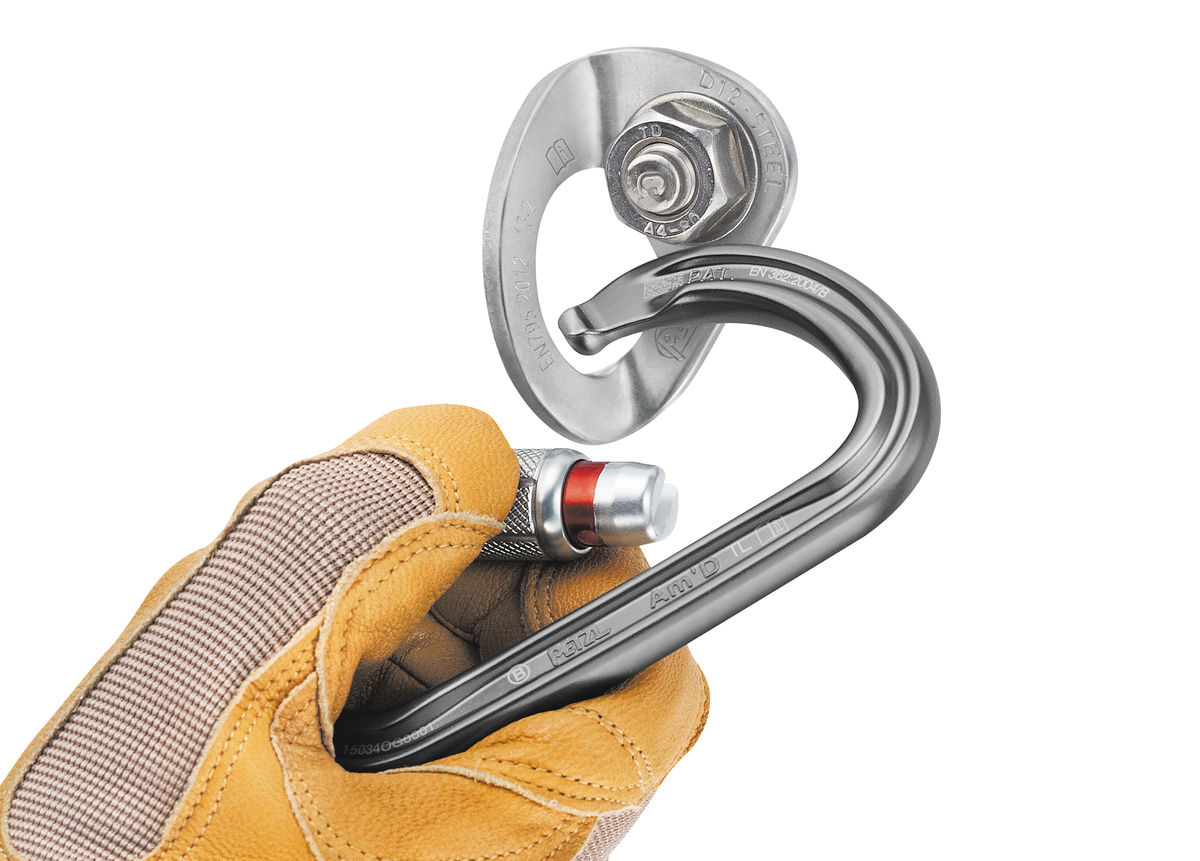

- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
• Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
• Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
• Available in two bolt sizes (10 or 12 mm)

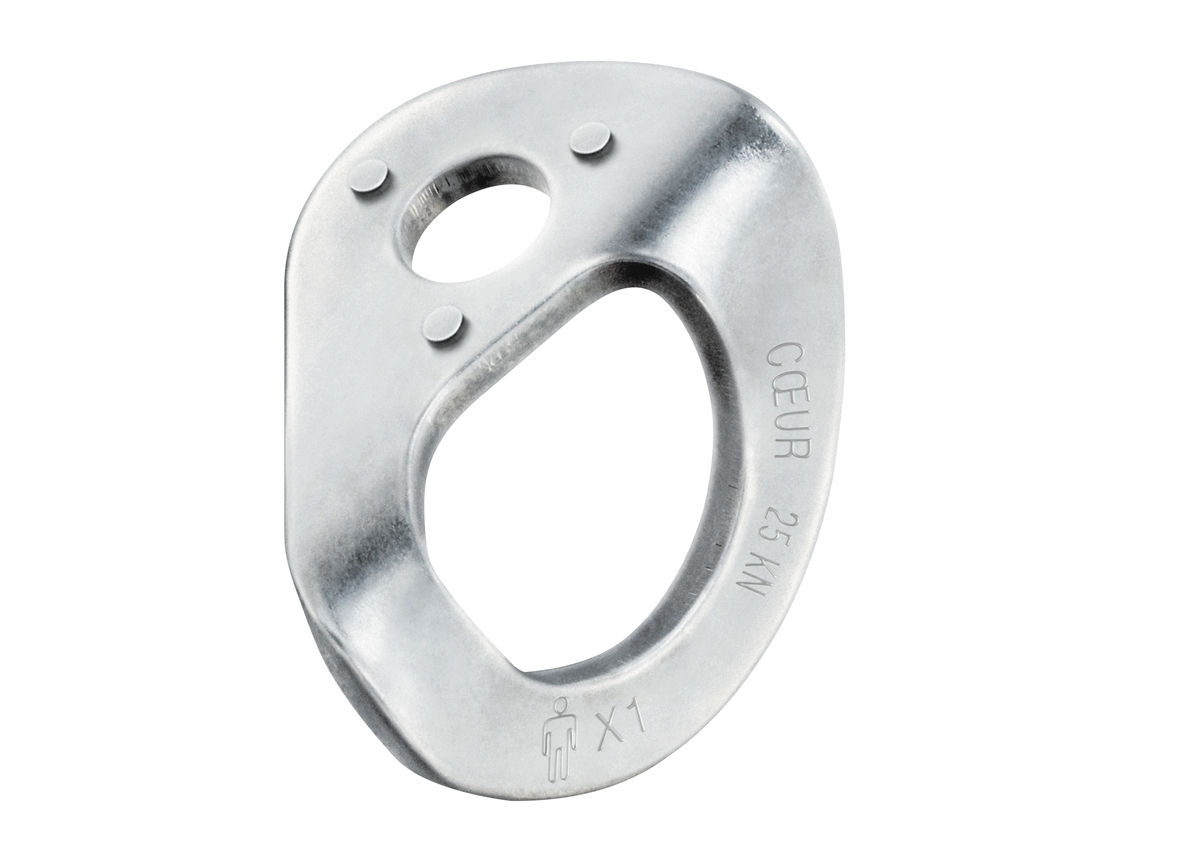

• COEUR STEEL hangers, available separately:
- for 10 mm diameter bolt (P36AA 10)
- for 12 mm diameter bolt (P36AA 12)
Specifications
• Material(s): steel
• SKUs: P36BA 10
• Diameter: 10 mm
• Weight: 110 g
• Drilling diameter: 10 mm
• Total bolt length: 85 mm
• Resistance to cutting on concrete 50 MPa: 23 kN
• Pull-out strength in concrete 50 MPa: 15 kN
• Guarantee: 3 years
Specifications
Petzl COEUR BOLT STEEL (20 pack)
Part Number: P36BA 10 Weight: 3.3 lbs.
