Stainless steel anchor for typical exterior use (pack of 20)

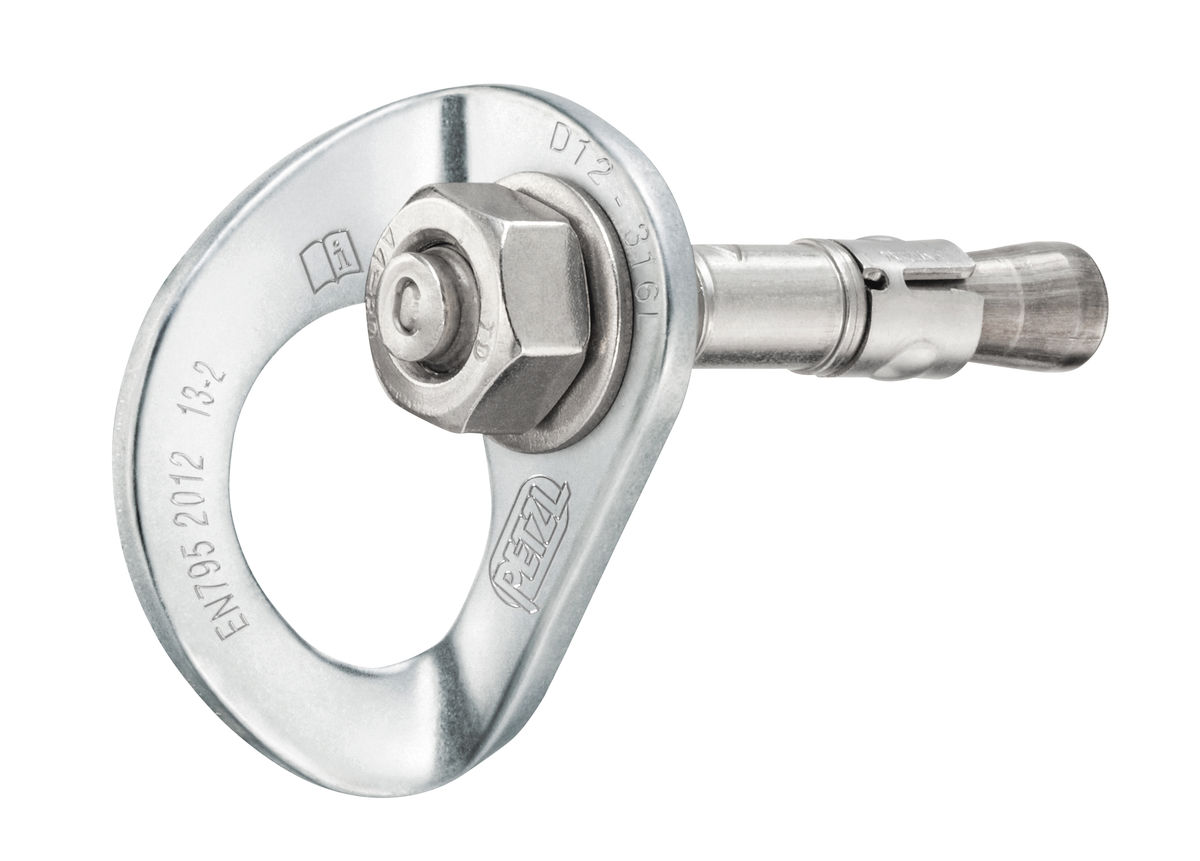

Stainless steel anchor composed of a COEUR STAINLESS hanger, a bolt, and a nut, and is designed for typical exterior use. It is available in 10 and 12 mm diameters.
Detailed description:
• Complete and durable assembly:
- comprised of a COEUR STAINLESS hanger, nut and bolt
- 316L stainless steel offers excellent resistance to corrosion in typical exterior environments
- hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
• Easy to clip:

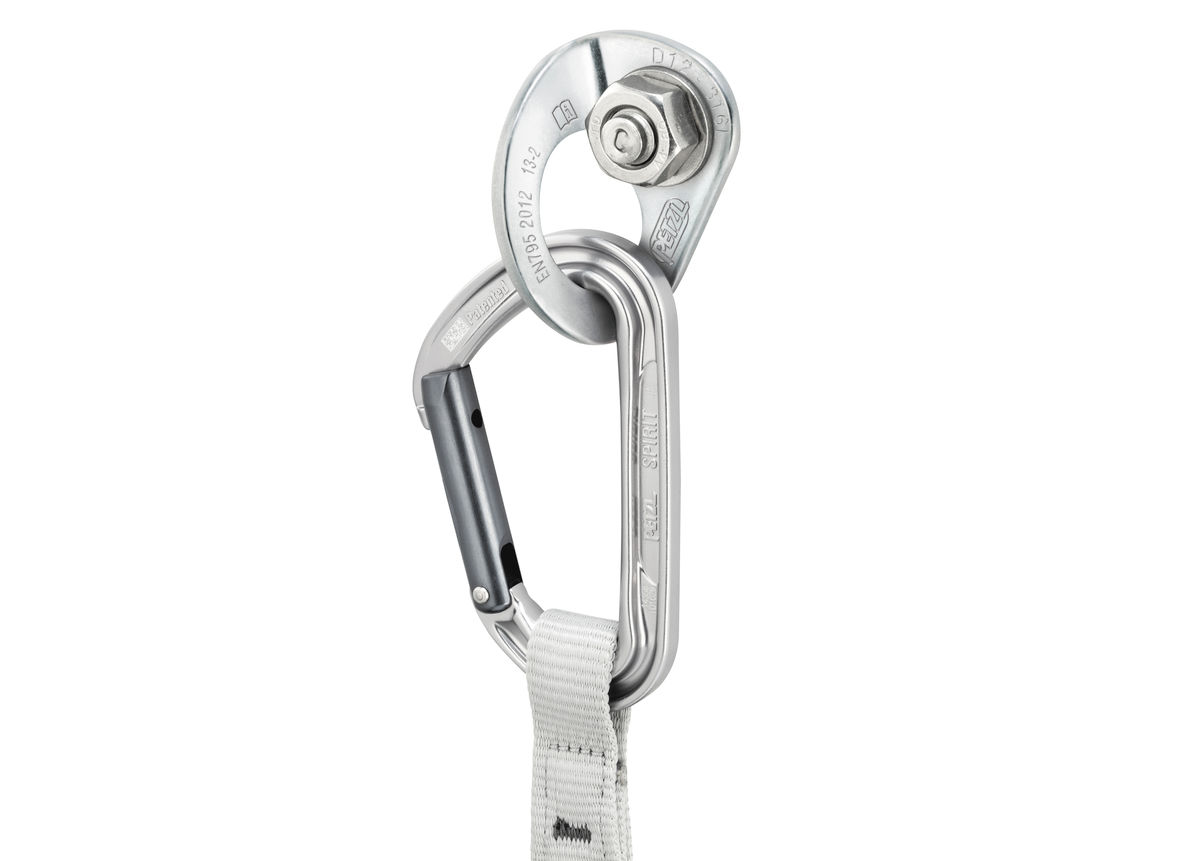

- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
• Reduces wear on carabiners: the thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners
• Available in two bolt sizes (10 or 12 mm)
Specifications:
• Material(s): 316L stainless steel
• Certification(s): EN 959
• SKUs: P36BS 10
• Diameter: 10 mm
• Weight: 110 g
• Drilling diameter: 10 mm
• Total bolt length: 70 mm
• Resistance to cutting on concrete 50 MPa: 25 kN
• Pull-out strength in concrete 50 MPa: 15 kN
• Guarantee: 3 years
Specifications
Part Number: P36BS 10 Weight: 3.3 lbs.
