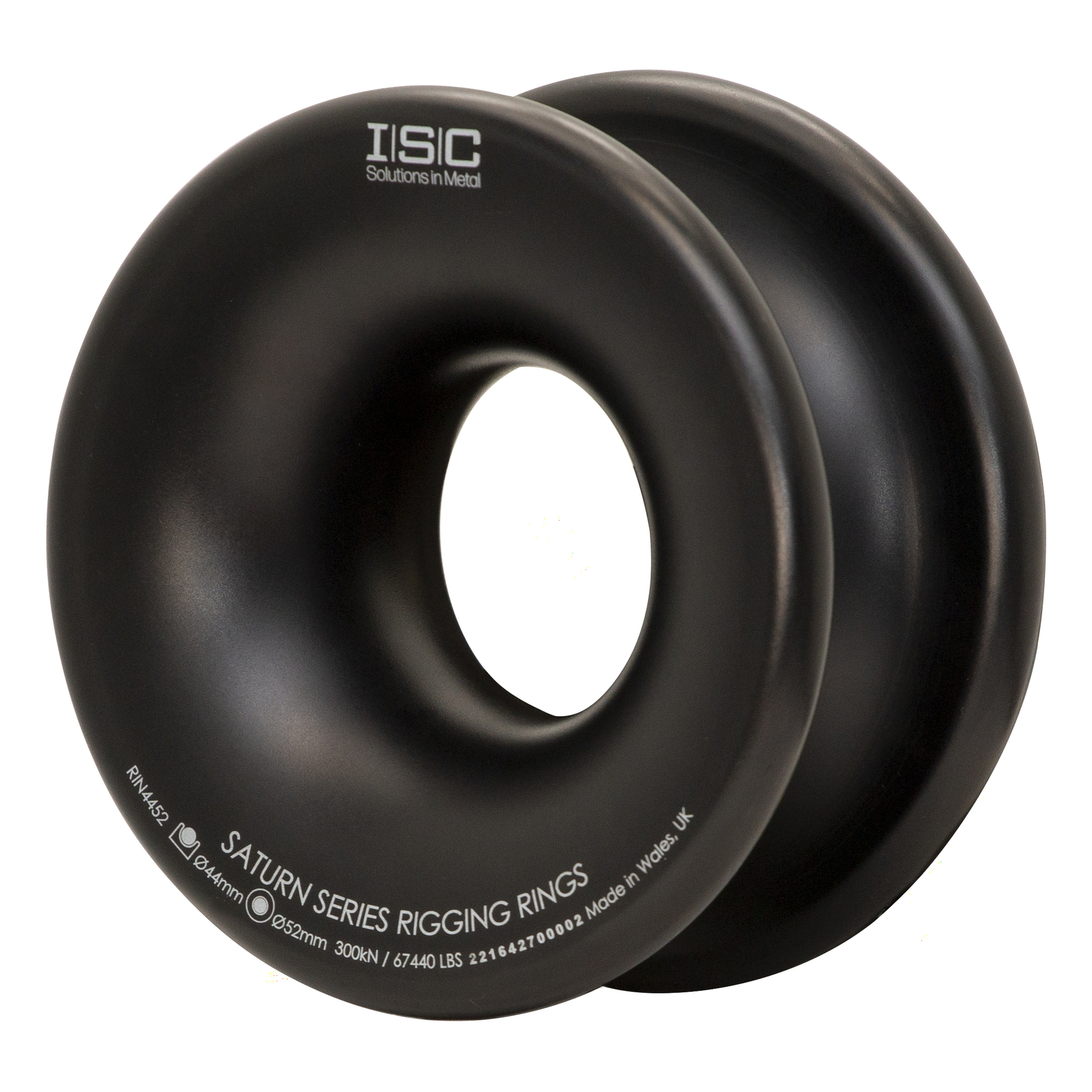

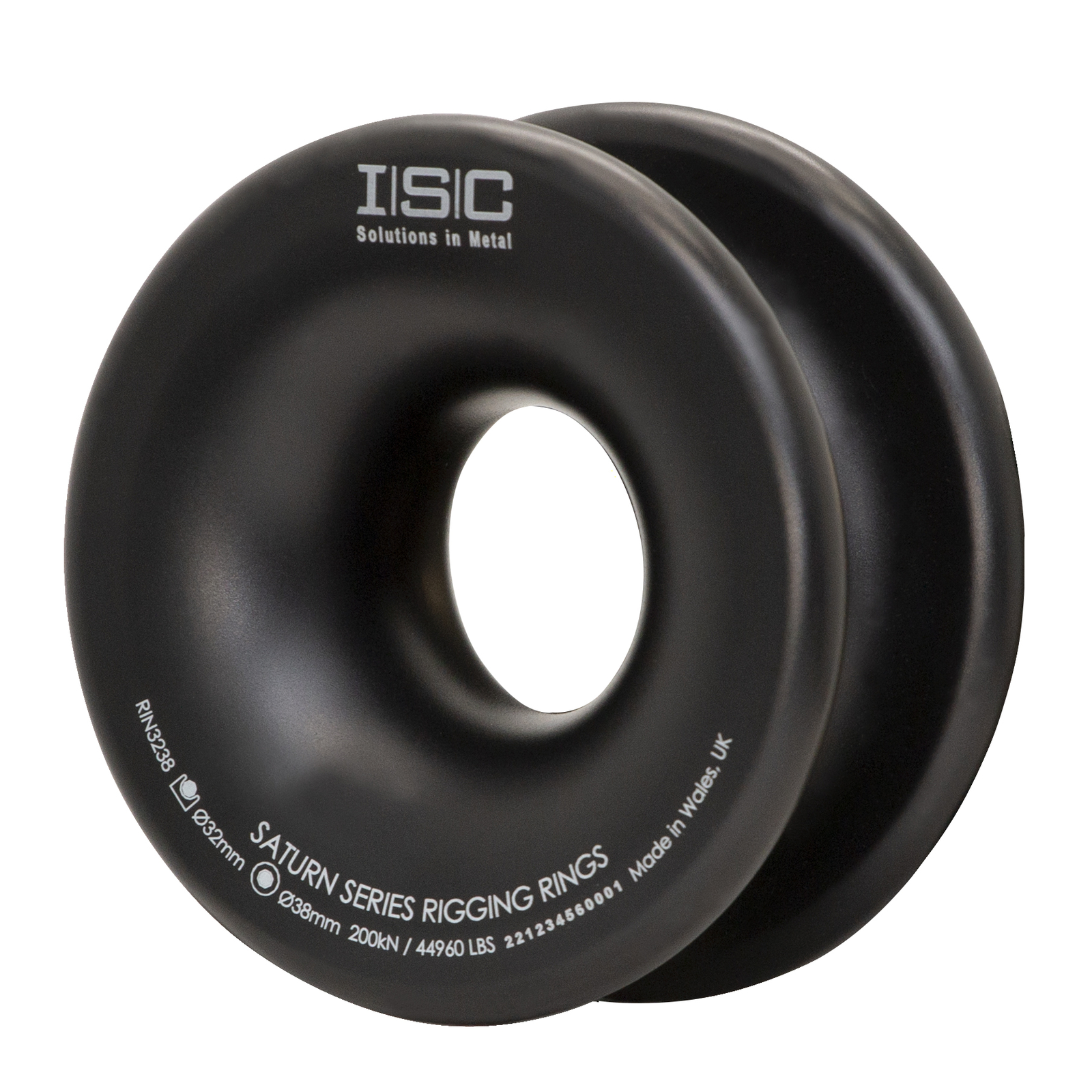

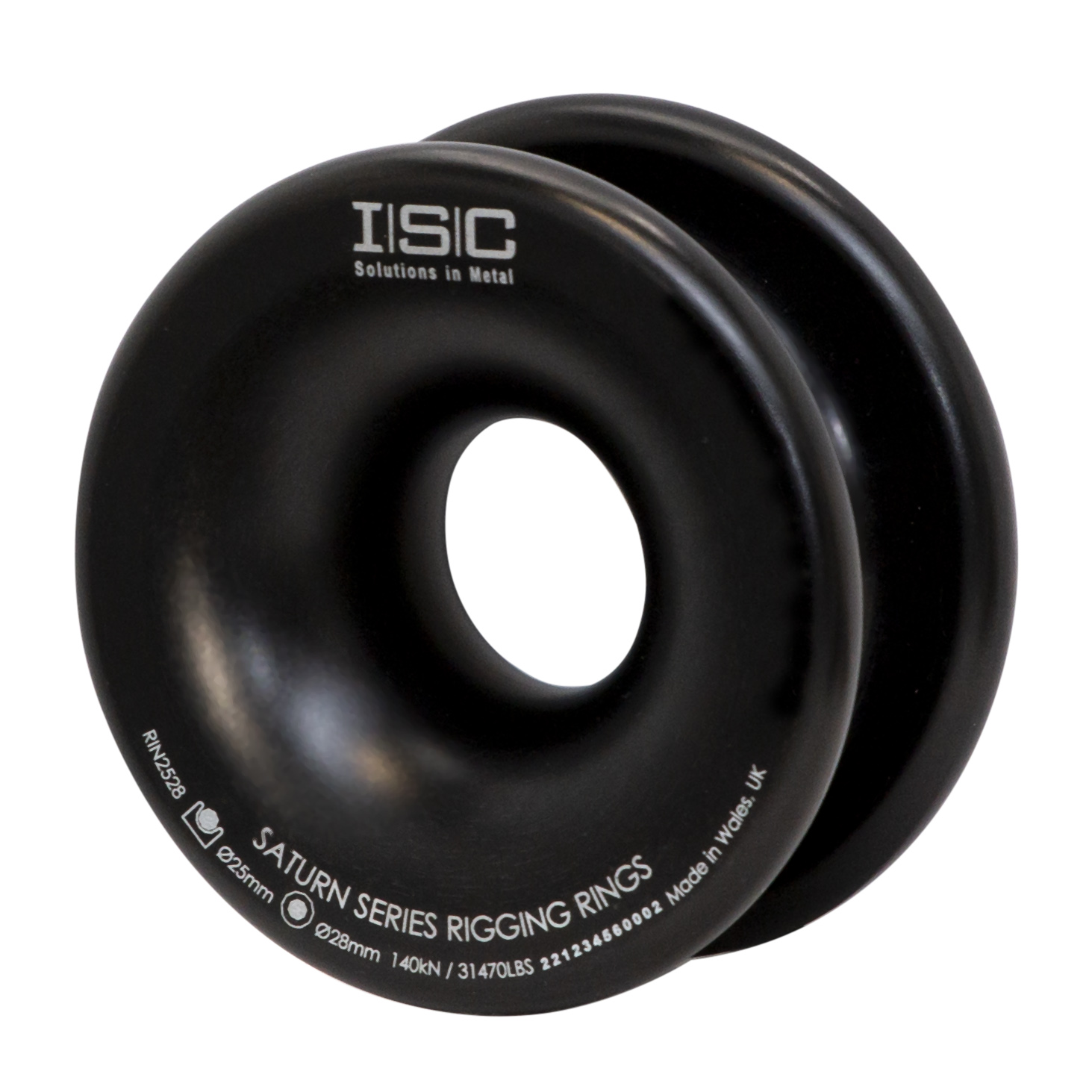

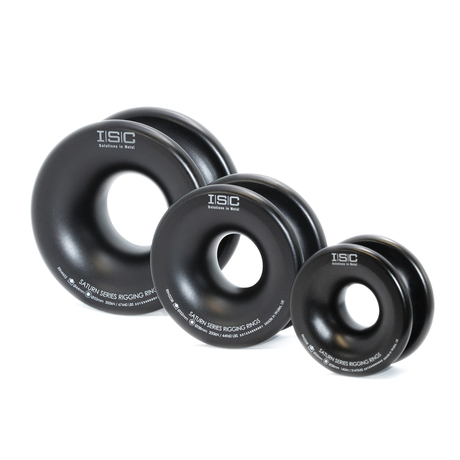

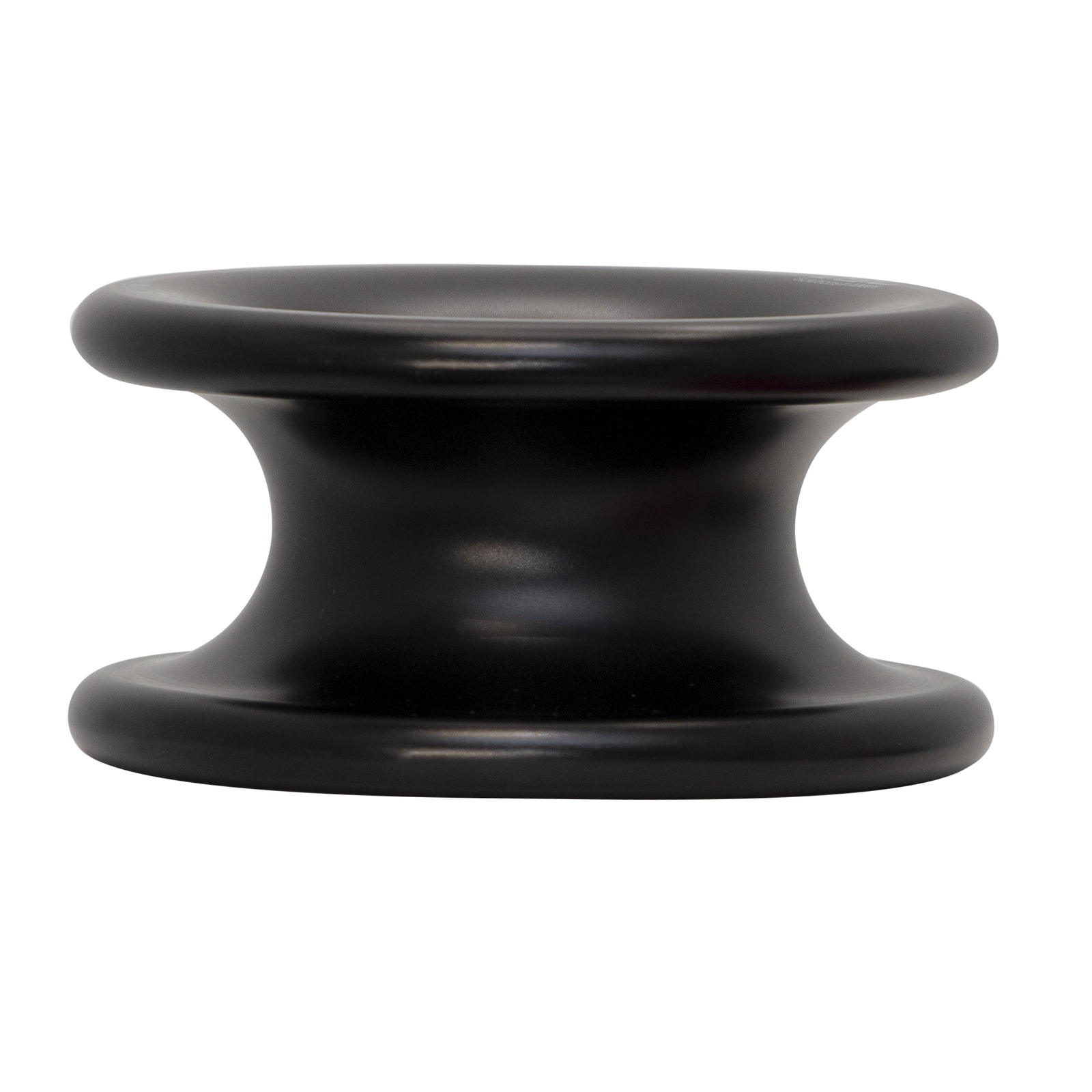

SATURN Series Rigging Rings are CNC Machined from solid Aluminium, with smooth radiused rope surfaces. The rings have a Hard-Anodised coating for durability and a polished, low-friction finish. ISC SATURN Rigging Rings are available in three sizes and can be used in a wide variety of rigging configurations. SATURN Rings can also be spliced in to anchor slings by the supplier/user and used to create single/multiple redirects, to tailor the friction in a rigging system. Rigging rings are versatile, low maintenance and easy to inspect.
Technical Information:
• Part Code: RIN2528 Small
• Overall Diameter: 88mm (3.5”)
• Inner Diameter: 28mm (1.1")
• Groove Radius (Rope path): 25mm (0.98")
• MBS: 140kN (31473lbf)
• WLL: 28kN (6294lbf)
• Weight: 302g (10.6oz)
• Material/finish: Aluminium/ Polished & Hard Anodised
• Standards: CE 2006/42/E, UKCA
Specifications
ISC Saturn Series Rigging Rings
Part Number: RIN2528A1 Weight: 0.7 lbs.
- Description
- Ask a Question
- Reviews
SATURN Series Rigging Rings are CNC Machined from solid Aluminium, with smooth radiused rope surfaces. The rings have a Hard-Anodised coating for durability and a polished, low-friction finish. ISC SATURN Rigging Rings are available in three sizes and can be used in a wide variety of rigging configurations. SATURN Rings can also be spliced in to anchor slings by the supplier/user and used to create single/multiple redirects, to tailor the friction in a rigging system. Rigging rings are versatile, low maintenance and easy to inspect.
Technical Information:
• Part Code: RIN2528 Small
• Overall Diameter: 88mm (3.5”)
• Inner Diameter: 28mm (1.1")
• Groove Radius (Rope path): 25mm (0.98")
• MBS: 140kN (31473lbf)
• WLL: 28kN (6294lbf)
• Weight: 302g (10.6oz)
• Material/finish: Aluminium/ Polished & Hard Anodised
• Standards: CE 2006/42/E, UKCA
