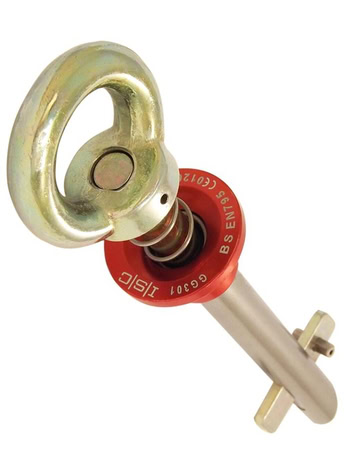

The GG301 is a quick & easy portable anchorage solution which can be used in the vertical and horizontal plane. The GG301 is designed for use through hollow-core precast concrete slabs of up to 100mm (4") depth. This anchor is operated by using two fingers to pull back the red collar. This action retracts the retention bar, allowing the device to be inserted into the anchor hole. Once the device is in position, the red collar can be released, causing the retention bar to engage, fixing the device in position.
Technical Information:
• (MBS) Minimum Breaking Strength (kN): 12
• (MBS) Minimum Breaking Strength (lbf): 2697
• Serial numbering: As standard
• Finish: Anodised
• Body finish: Polished
• Colour: Red
• Weight (grams): 695
• Weight (ounces): 24.5
Approved Standards:
• EN795:2012
Notes
• Attachment Eye ø 35mm (1.4")
• Insertion Hole ø 20-28mm (0.78-1.1")
Specifications
ISC Medium Pre-Cast Anchor
Part Number: GG301 Weight: 1.7 lbs.
