FRICTION SYSTEM
In order to complete its range of rigging devices, FTC has chosen a modular system. It allows for several configurations, and the basic gear can also be used by several teams for smaller rigging works.
DESCRIPTION

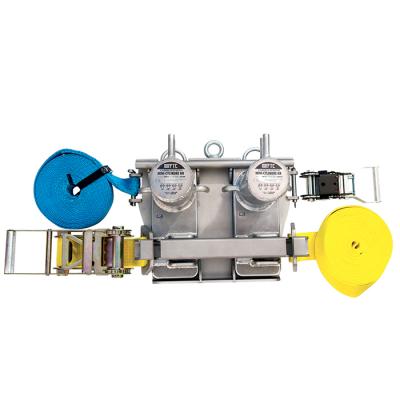

The TRANSFORMEUR is a friction system that you can adjust according to the work to be done. It comes with one or two MINI-CYLINDRES (HR or old version), with a winch as an option.
COMPLEMENTARY INFORMATION
Set up your system according to your exact needs. The only limit is your imagination!
The TRANSFORMEUR can be configured 3 ways according to the kind of work to be performed: the more the rope is wrapped, the harder the friction. What’s more, the symmetry of the system allows left or right location of the ground crew depending on the worksite restrictions.
Technical characteristics:
• Machinery Directive 2006/42/CE

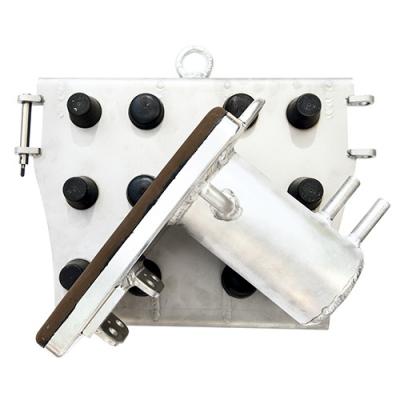

• All the supports are in 304L stainless steel (main plate, tubes and anchoring triangles, mono plate and winch plate).
• Yellow main anchoring strap (lower):
100 % polyester, 9 m (29.52 ft), 15,000 daN MBS with ratchet (10,000 daN MBS)

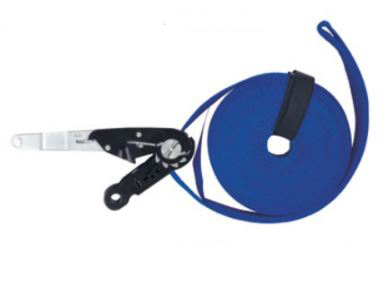

• Blue secondary strap (upper):
100 % polyester, 9 m (29.52 ft), 7,000 daN MBS with ratchet (5,000 daN MBS)
• Pivoting assembly axis:
304 stainless steel
• 12 rubber protection studs (removable)
• Main plate dimensions: 450 mm to 370 mm (17.71 in to 14.56 in)
• Upper lifting ring (DIN 580) the make attaching the plate easier by using the CROCH'TY (included)
• MINI-CYLINDRES HR friction devices in aluminium (the plate is compatible with the older generation MINI-CYLINDRES)

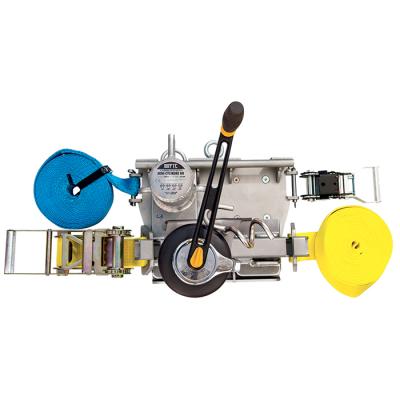

• Manual winch and handle (Winch 44 XT)
• MBS: 10,000 daN / WLL: 2,000 daN (depending on configuration)
Diameter of ropes that can be used: 12 mm to 18 mm (0.47 in to 0.70 in)
Specifications
Part Number: FTC/TF-C Weight: 165 lbs.
