rigging block mini eclipse 3
- Description
- Ask a Question
- Reviews

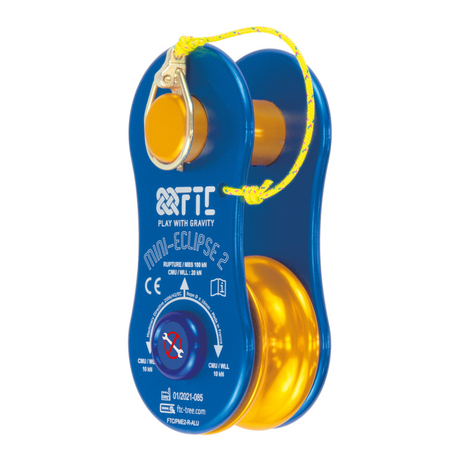

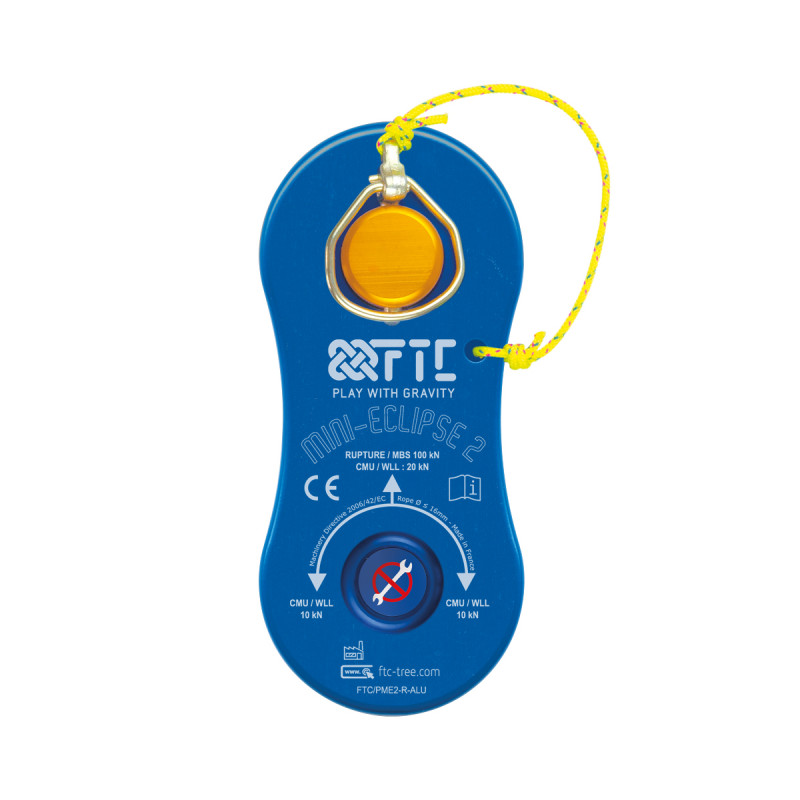

This pulley has been specially designed to be used for small rigging works or in addition to an ÉCLIPSE pulley for rope redirects.
A highly resistant aluminium pulley that is extremely practical thanks to its movable upper axle and rotating cheek plates that permit quick release of the attaching sling and rope. It is locked with a safety linch pin (against unwanted opening) that can’t be lost thanks to its attachment string.
The sides of the cheek plates and the sheave are rounded to prevent damage to ropes during incorrect use. The sheave (Ø 65 mm - 2.55 in) contains a deep groove that can hold up ropes up to Ø 16 mm.
TECHNICAL DATA:
• Machinery Directive:2006/42/CE
• Weight: 650 g (22.9 oz)
• MBS: 100 kN - WLL, coef. 5: 20 kN
• Sheave: Ø 65 mm (1.4 lb)
• Max. rope: Ø 16 mm (0.6 lb)
Specifications
FTC MINI-ÉCLIPSE 2
Part Number: FTC/PME2-R-ALU Weight: 1.6 lbs.
- Description
- Ask a Question
- Reviews
This pulley has been specially designed to be used for small rigging works or in addition to an ÉCLIPSE pulley for rope redirects.
A highly resistant aluminium pulley that is extremely practical thanks to its movable upper axle and rotating cheek plates that permit quick release of the attaching sling and rope. It is locked with a safety linch pin (against unwanted opening) that can’t be lost thanks to its attachment string.
The sides of the cheek plates and the sheave are rounded to prevent damage to ropes during incorrect use. The sheave (Ø 65 mm - 2.55 in) contains a deep groove that can hold up ropes up to Ø 16 mm.
TECHNICAL DATA:
• Machinery Directive:2006/42/CE
• Weight: 650 g (22.9 oz)
• MBS: 100 kN - WLL, coef. 5: 20 kN
• Sheave: Ø 65 mm (1.4 lb)
• Max. rope: Ø 16 mm (0.6 lb)
