FEATURES:
•Features 2" x 4-1/2" unplated alloy steel anchoring plate and plated steel D-ring
•Plain steel anchoring plate is ideally suited for permanent weld-on installation.
•1/2" holes also provided for bolt-on fixed position installation
•Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS:
•Installation Plate: Unplated alloy steel
•D-ring: Plated alloy; 5,000 lb min. static strength
PERFORMANCE SPECIFICATIONS:
•Static Strength: 5,000 lb min.
•ANSI User Capacity: 130 to 310 lb max.
•OSHA User Capacity: 130 to 425 lb max.
Specifications

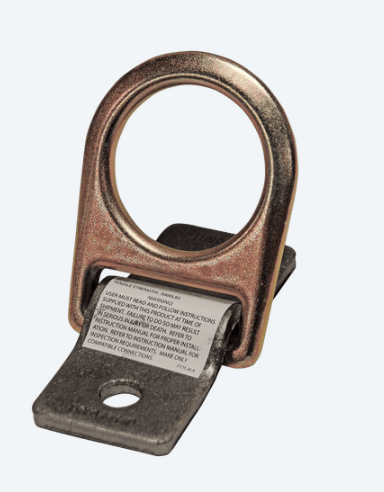

FallTech Weld-on D-ring Anchor with Unplated Installation Plate
Part Number: 7414P Weight: 1 lbs.
