FEATURES:
• Anti-panic function provides the safest solution available for vertical rope attachment
• Hinged design allows user installation at any point on the lifeline.
• Trailing mobility follows ascending and descending user with minimal effort
• Energy absorber features patented ViewPack cover with inspection window
• For use with 5/8" diameter synthetic rope lifelines
• Includes alloy steel fall arrester for lifeline connection and snap hook for harness attachment
• Complies with ANSI Z359.15-2014
MATERIAL SPECIFICATIONS
• Webbing: Polyester; 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Fall Arrester: 5/8" Fall Arrester/Grab; Plated alloy steel; 5.000 lb min.
• Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
• Static Strength:1,800 lb min.
• ANSI Lanyard Class: 6' free fall
• Max. Arrest Distance: 11'
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
• 8388 (ANSI Compliant)
• C8388 (CSA Compliant)
COMPLIANT WITH:
• ANSI Z359.15-2014 CSA Z259.2.5-2017 OSHA 1926.502 and 1910.66
Specifications

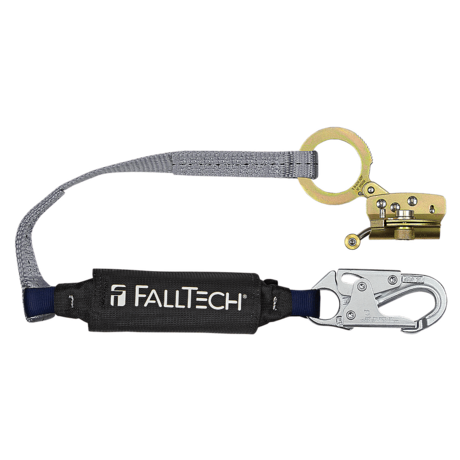

Falltech Hinged Trailing Fall Arrester with Anti-panic and 3' ViewPack Energy Absorbing Lanyard (CSA)
Part Number: C8388 Weight: 3.3 lbs.
- Description
- Ask a Question
- Reviews
FEATURES:
• Anti-panic function provides the safest solution available for vertical rope attachment
• Hinged design allows user installation at any point on the lifeline.
• Trailing mobility follows ascending and descending user with minimal effort
• Energy absorber features patented ViewPack cover with inspection window
• For use with 5/8" diameter synthetic rope lifelines
• Includes alloy steel fall arrester for lifeline connection and snap hook for harness attachment
• Complies with ANSI Z359.15-2014
MATERIAL SPECIFICATIONS
• Webbing: Polyester; 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Fall Arrester: 5/8" Fall Arrester/Grab; Plated alloy steel; 5.000 lb min.
• Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
• Static Strength:1,800 lb min.
• ANSI Lanyard Class: 6' free fall
• Max. Arrest Distance: 11'
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
• 8388 (ANSI Compliant)
• C8388 (CSA Compliant)
COMPLIANT WITH:
• ANSI Z359.15-2014 CSA Z259.2.5-2017 OSHA 1926.502 and 1910.66
