FEATURES:
• Innovative EdgeCore™ lifeline is made from Kevlar cables and a UV-resistant composite jacket, weighing 40% less than 3/16” galvanized cable used in most Class 2 SRL-P’s
• Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
• Features comprehensive fall clearance charts and tables inside the energy absorber cover
• Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
• Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
• Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
• Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time. Request SpeedLink™ Spanner Tool
• Replacement retractable part number is 84108RP3
• Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper
MATERIAL SPECIFICATIONS
• Lifeline: EdgeCore™; 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Aluminum alloy; 3,600 lb min.
PERFORMANCE SPECIFICATIONS
• Static Strength: 3,600 lb min.
• ANSI SRL Class/Type: Class 2 SRL-P
• Avg. Arrest Force: 1,350 lb max.
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 420 lb max.
COMPLIANT WITH:
• CSA Z259.2.2-2017 ANSI Z359.14-2021 OSHA 1926.502 and 1910.66
Specifications

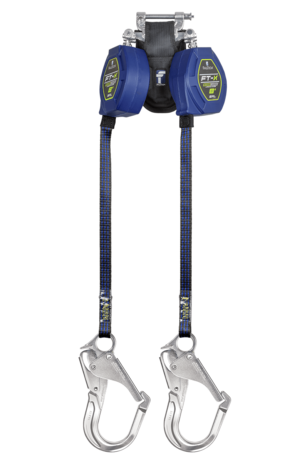

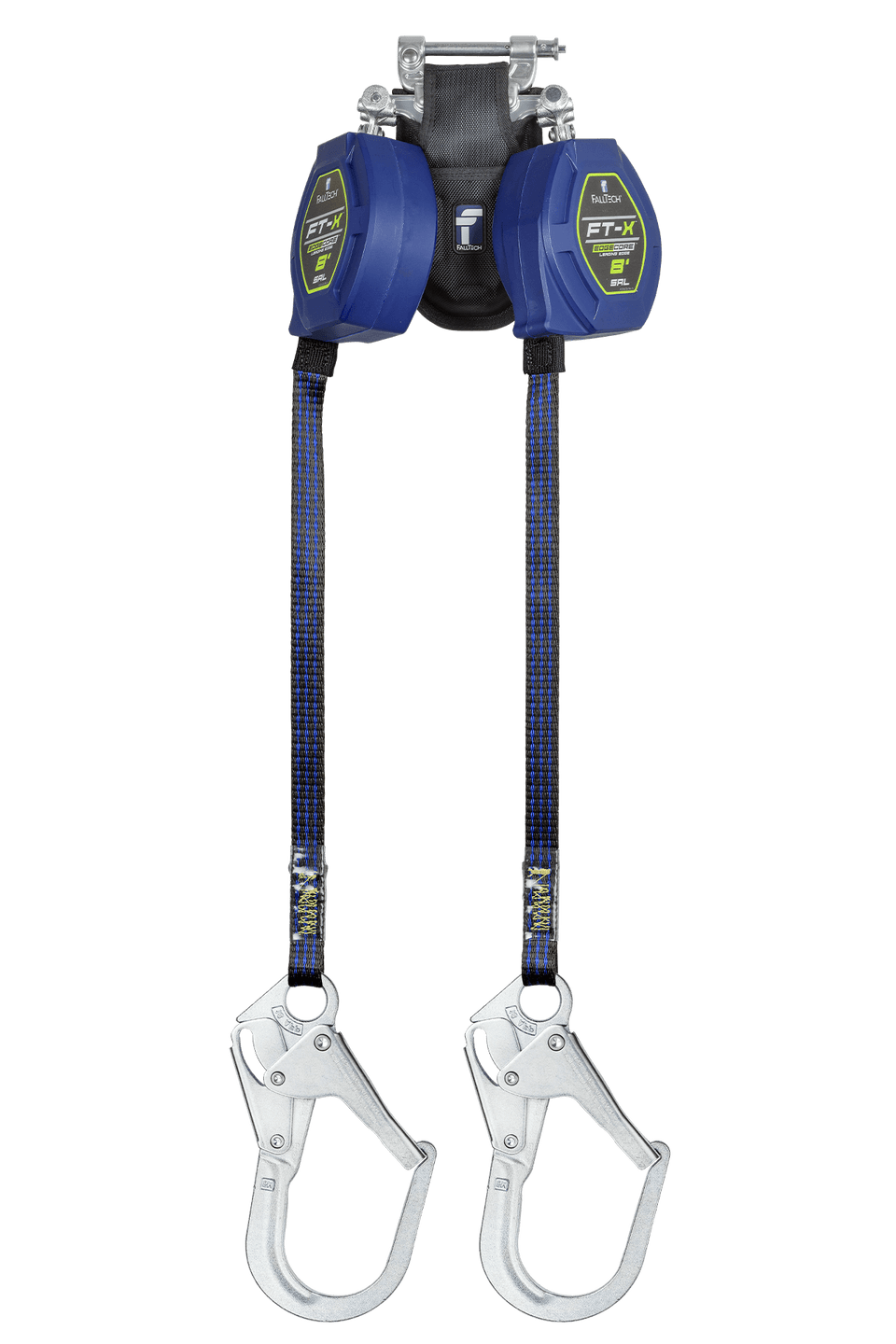

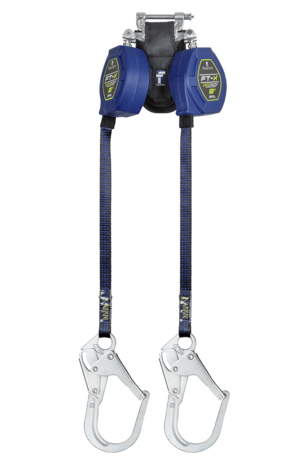

Falltech FT-X EdgeCore Class 2 Leading Edge Personal SRL-P
Part Number: 84108TP3 Weight: 5.5 lbs.
