FEATURES:
• 7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
• Internal inertial braking system with dual disc brakes provides superior deceleration.
• Integrated external ViewPack energy absorber enhances braking system and preserves lifeline integrity
• Side-payout housing design and lifeline recoil spring deliver smooth operation and help reduce nuisance lock-up
• Integrated lifeline hand-grip simplifies dorsal connection
• Stackable aluminum housing design and handle provide easy installation and storage
• Includes extra large anchorage carabiner with 2-1/4" gate opening
• Complies with ANSI Z359.14-2021 Class 2 SRL. Learn more and download White Paper
MATERIAL SPECIFICATIONS
• Cable:7/32" galvanized steel; 3,600 lb min. static strength
• Energy Absorber: Polyester tear-away
• Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
• Static Strength: 3,600 lb min.
• ANSI SRL Class/Type: Class 2 SRL
• Avg. Arrest Force: 1,350 lb
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
• 7227CLE - 20'
• 7232CLE - 30'
• 7268CLE - 50'
• 7265CLE - 60'
COMPLIANT WITH:
• ANSI Z359.14-2021 OSHA 1926.502 and 1910.66
Specifications

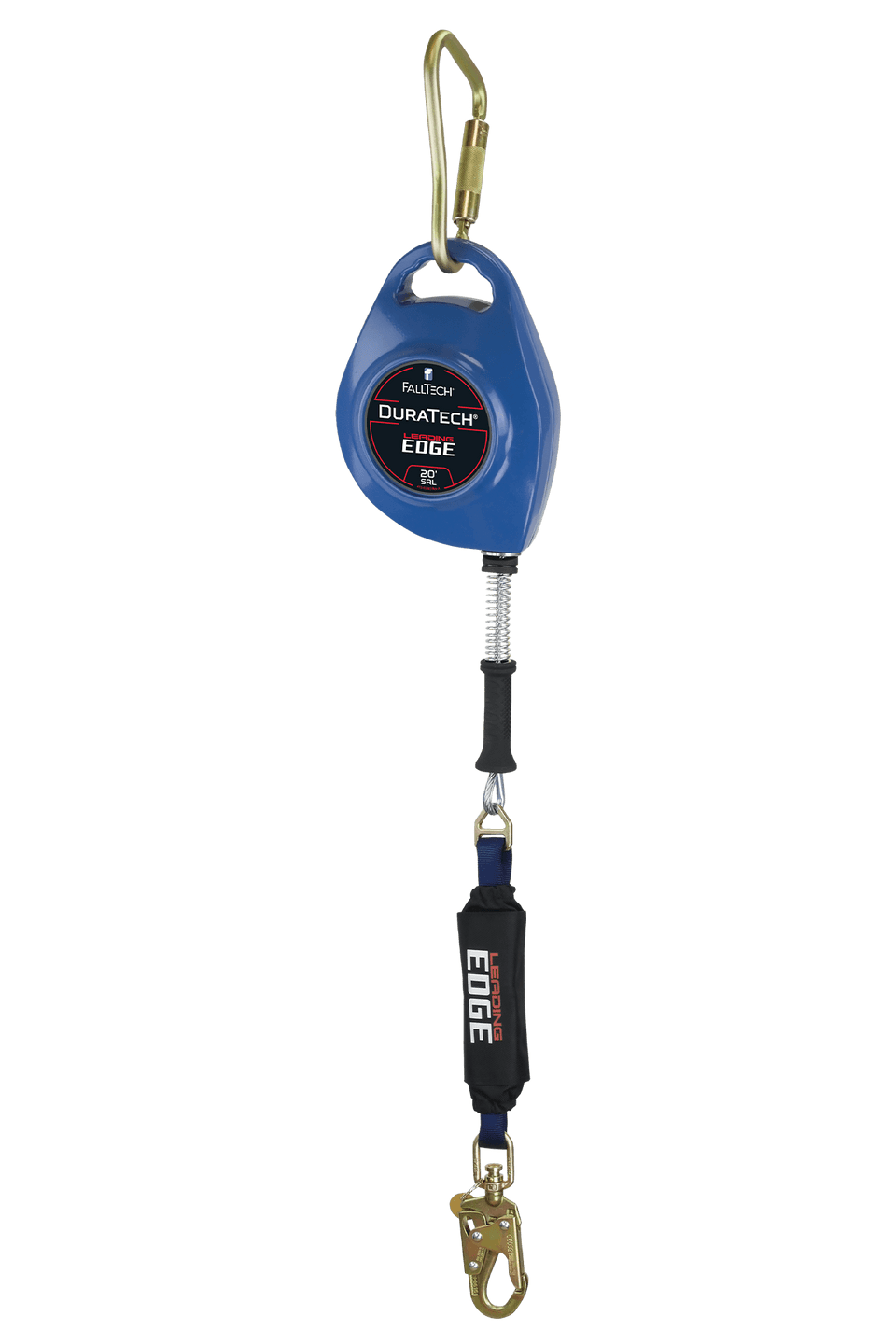

Falltech DuraTech Leading Edge Class 2 SRL with Galvanized Steel Cable and Aluminum Housing
Part Number: 7227CLE Weight: 5.5 lbs.
