FEATURES:
• 7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
• Internal inertial braking system provides positive stopping action and uniform deceleration.
• Integrated external ViewPack energy absorber strengthens the braking system and preserves lifeline integrity
• Durable glass-filled nylon housing extends service life
• Integrated lifeline hand-grip simplifies dorsal connection and recoil spring helps prevent lifeline lock-up
• Load-indicating snap hook provides visual fall event indication
• Complies with ANSI Z359.14-2021 Class 2 SRL. Learn more and download White Paper
MATERIAL SPECIFICATIONS
• Cable: 7/32" galvanized steel; 3,600 lb min. static strength
• Energy Absorber: Polyester tear-away
• Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
• Static Strength: 3,600 lb min.
• ANSI SRL Class/Type: Class 2 SRL
• Avg. Arrest Force: 1,350 lb
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
• 727620LE - 20' (ANSI Compliant)
• 727630LE - 30' (ANSI Compliant)
• C727630LE - 30' (CSA Compliant)
• 727650LE - 50' (ANSI Compliant)

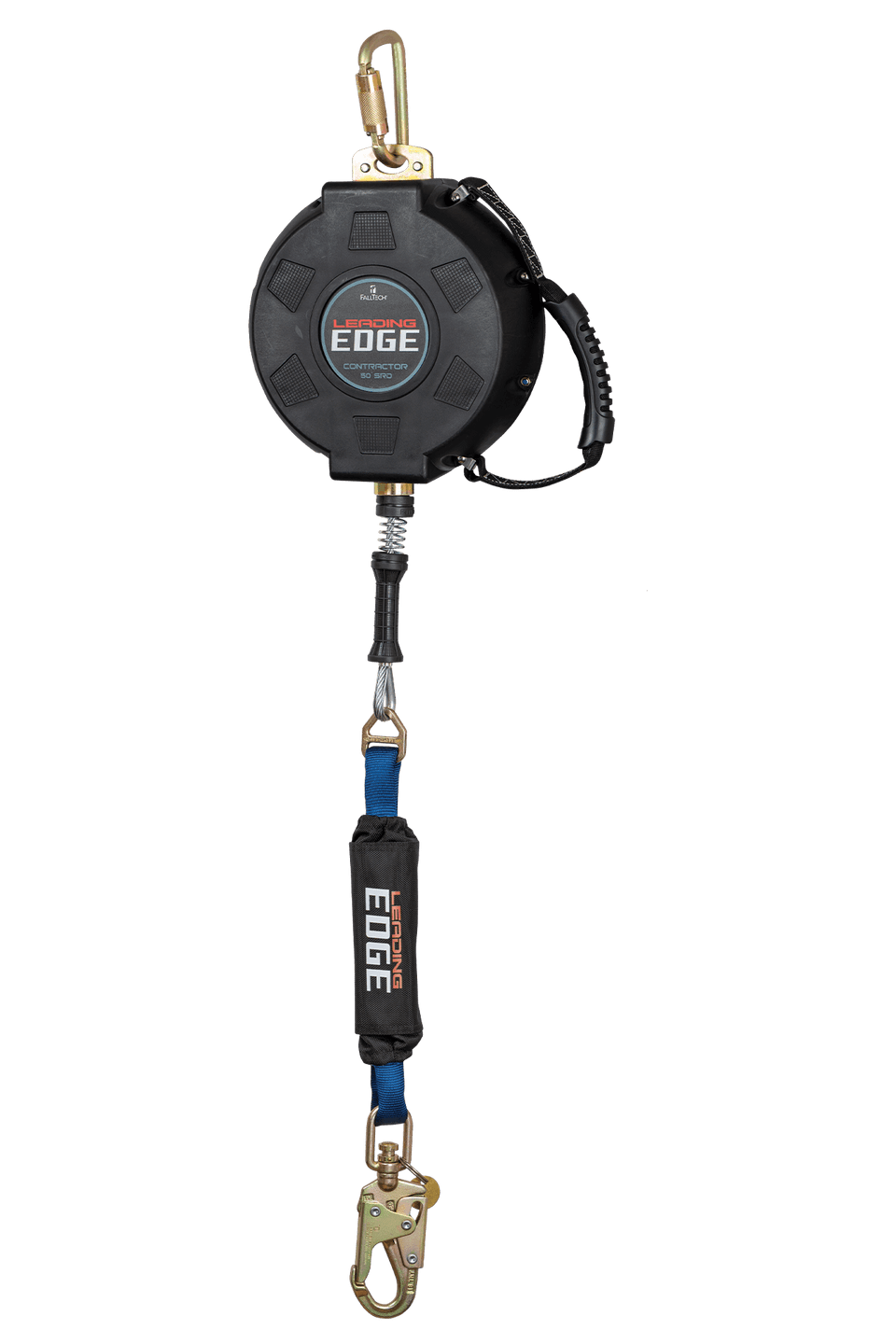

• C727650LE - 50' (CSA Compliant)
COMPLIANT WITH:
• ANSI Z359.14-2021 OSHA 1926.502 and 1910.66 CSA Z259.2.2-2017
Specifications

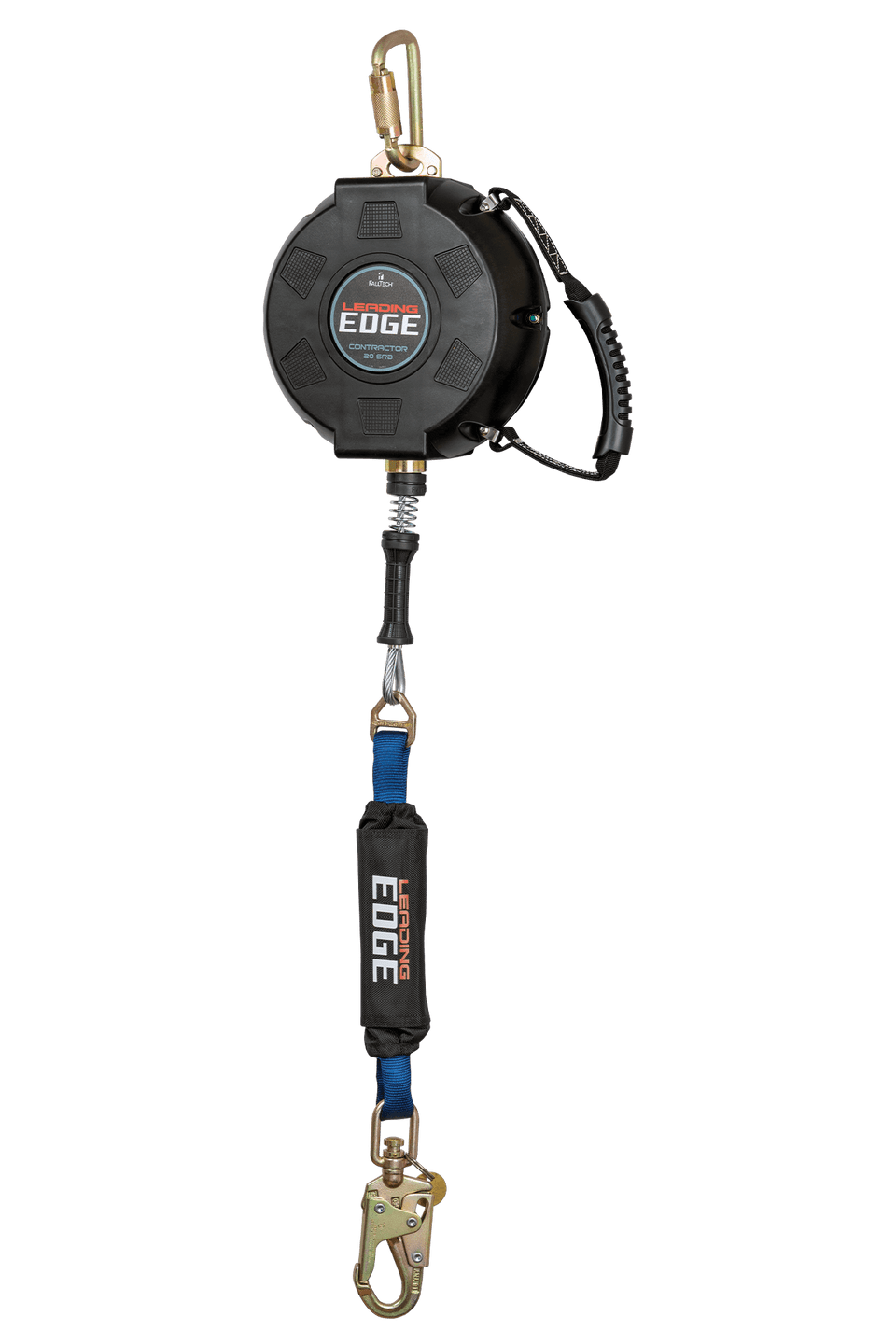

Falltech Contractor Leading Edge Class 2 SRL with Galvanized Steel Cable and Anchorage Carabiner
Part Number: 727620LE Weight: 5.5 lbs.
