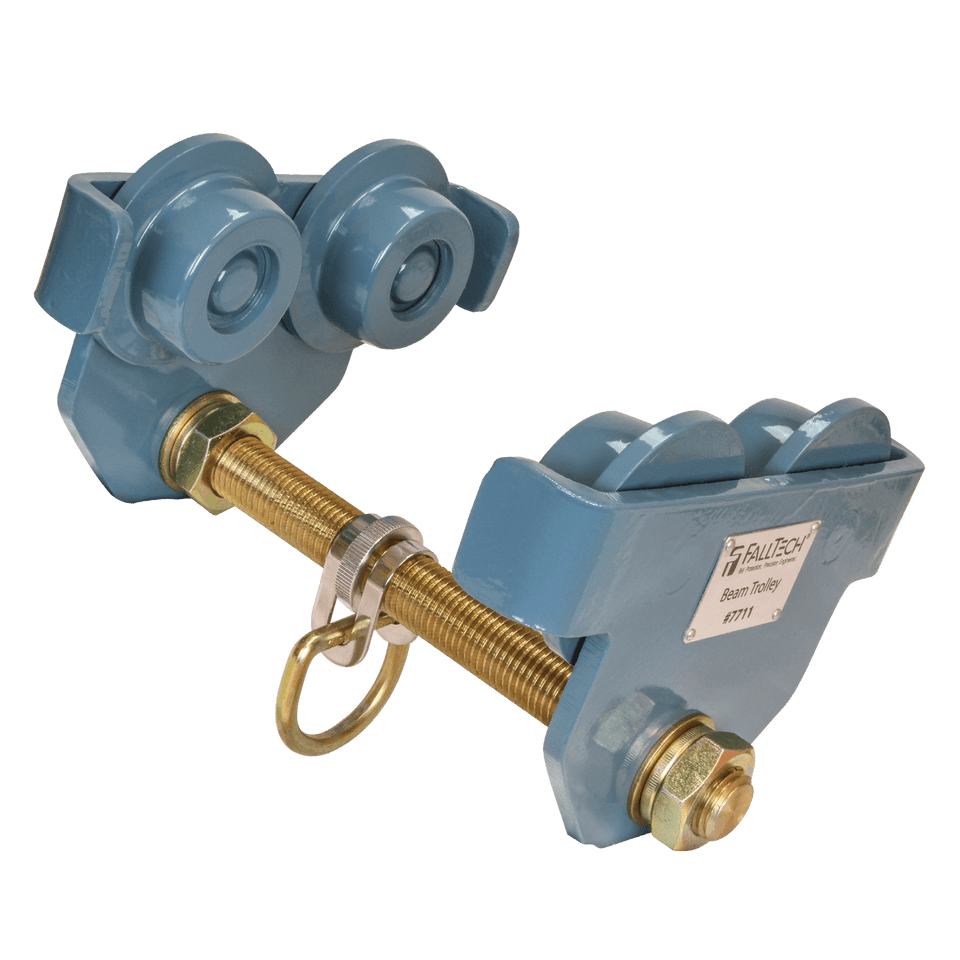

• Falltech 8" All-steel Beam Trolley Anchor

7711 1

7711 1

• Description
• Ask a Question
• Reviews

FEATURES:
• Features single trolley adjustment and threaded steel crossbar
• Includes steel wheels, side plates and adjustment rings.
• Fits beam flanges from 3" to 8" wide and up to 1-1/2" thick
• For temporary or permanent installation on overhead horizontal I-beams
• Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS
• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Crossbar: Plated carbon steel
• Wheel Plates: Powder coated carbon steel

PERFORMANCE SPECIFICATIONS
• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

COMPLIANT WITH:
• ANSI Z359.18-2017 OSHA 1926.502 and 1910.66

Specifications

Product Name

Product URL

Name *

Email *

Phone *

Question

Write Review

Falltech 8" All-steel Beam Trolley Anchor

$628.95 CAD

Product Details:

Part Number: 7711

Size:

3" to 8" Wide & Up To 1-1/2" Thick

(size - strength)

Material:

n/a

Option 3:

n/a

Option 4:

n/a

Option 5:

n/a

Options:

Unit Pricing

Quantity: *

- +

Total: $ 628.95

Part Number: 7711 Weight: 5.5 lbs.
