FEATURES:
• Features aluminum crossbar and steel clamping jaws with nylon slider pads
• Fits beam flanges from 3" to 14-1/2" wide and up to 1-1/4" thick.
• Single adjusting jaw includes concealed locking latch
• Alloy steel D-ring slides with jaw adjustment
• For temporary mobile use on horizontal I-beams
• Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Crossbar: Aluminum alloy
• Clamp Jaws: Plated alloy steel
PERFORMANCE SPECIFICATIONS
• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.
COMPLIANT WITH:
• ANSI Z359.18-2017 OSHA 1926.502 and 1910.66
Specifications

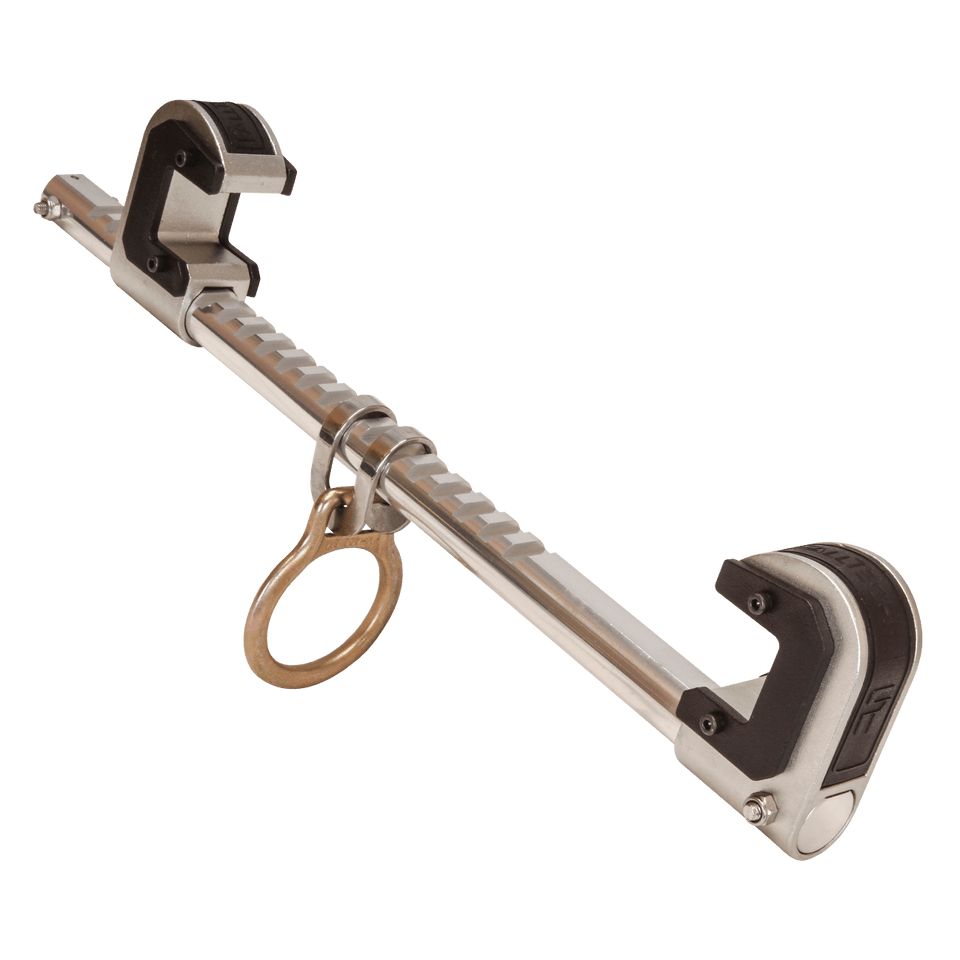

Falltech 14 ½" Trailing Beam Anchor with Single-clamp Adjustment
Part Number: 7531 Weight: 3.3 lbs.
