FEATURES:
• Features aluminum crossbar and steel clamping jaws with nylon slider pads
• Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick.
• Dual adjusting jaws include concealed locking latches
• Alloy steel D-ring remains centered on crossbar
• For temporary mobile use on horizontal I-beams
• Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS
• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Crossbar: Aluminum alloy
• Clamp Jaws: Plated alloy steel

PERFORMANCE SPECIFICATIONS
• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

COMPLIANT WITH:
• ANSI Z359.18-2017 OSHA 1926.502 and 1910.66

Specifications

Write Review

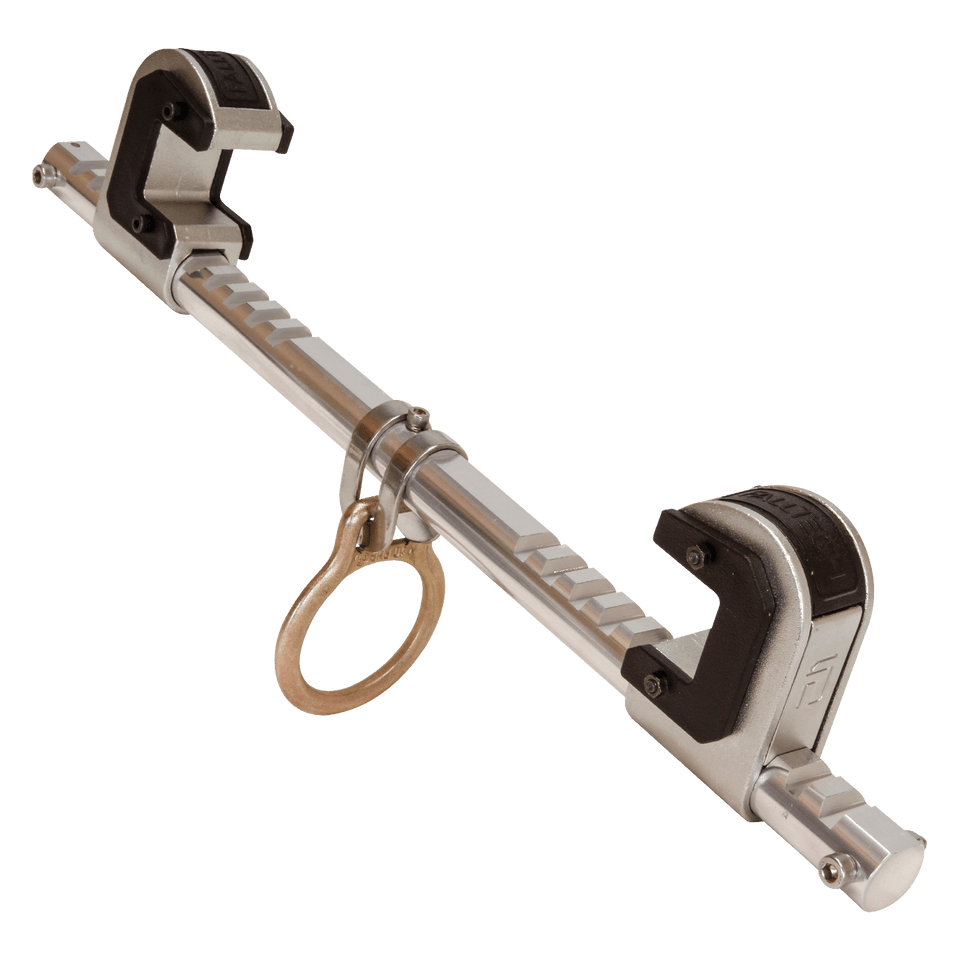

Falltech 14" Trailing Beam Anchor with Dual-clamp Adjustment

USA
$382.95 CAD

Part Number: 7530

(size - strength)
- +
30 Days Moneyback Secure Payemnt Free Shipping

Part Number: 7530 Weight: 3.3 lbs.

  • Description
  • Ask a Question
  • Reviews

FEATURES:
• Features aluminum crossbar and steel clamping jaws with nylon slider pads
• Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick.
• Dual adjusting jaws include concealed locking latches
• Alloy steel D-ring remains centered on crossbar
• For temporary mobile use on horizontal I-beams
• Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS
• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Crossbar: Aluminum alloy
• Clamp Jaws: Plated alloy steel

PERFORMANCE SPECIFICATIONS
• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

COMPLIANT WITH:
• ANSI Z359.18-2017 OSHA 1926.502 and 1910.66
