FEATURES:
• Features threaded aluminum crossbar and jaws with knurled rings for fine adjustment
• Exclusive recessed under-jaw ball bearings provide improved mobility.
• Fits beam flanges from 3" to 12-1/4" wide and up to 1" thick
• For temporary mobile use on horizontal I-beams
• Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Crossbar: Aluminum alloy
• Clamp Jaws: Aluminum alloy
PERFORMANCE SPECIFICATIONS
• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.
COMPLIANT WITH:
• OSHA 1926.502 and 1910.66 ANSI Z359.18-2017
Specifications

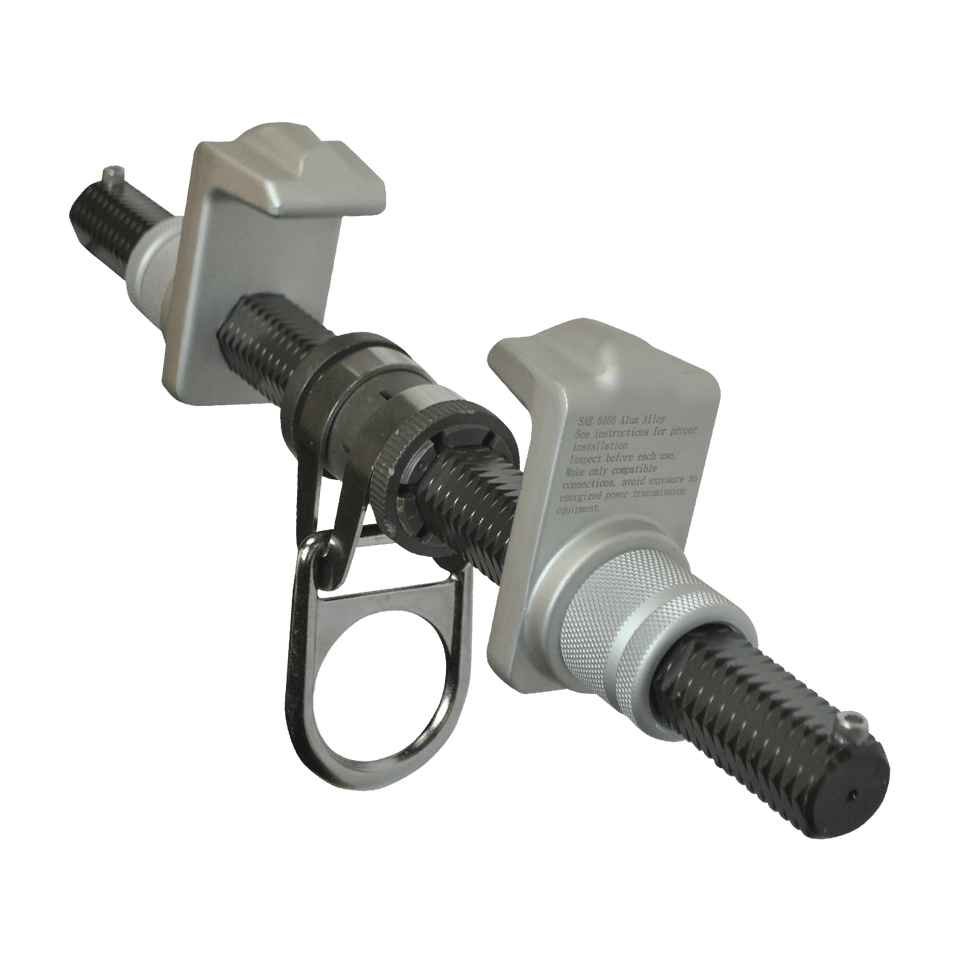

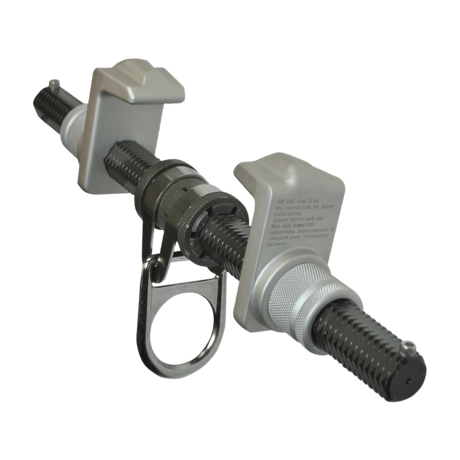

Falltech 12 ¼" Trailing Beam Anchor with Dual-clamp Adjustment
Part Number: 7533 Weight: 3.3 lbs.
