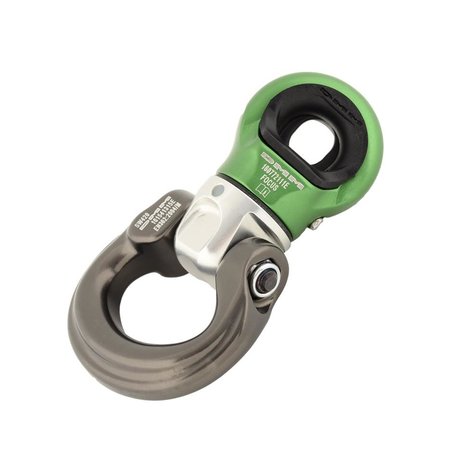

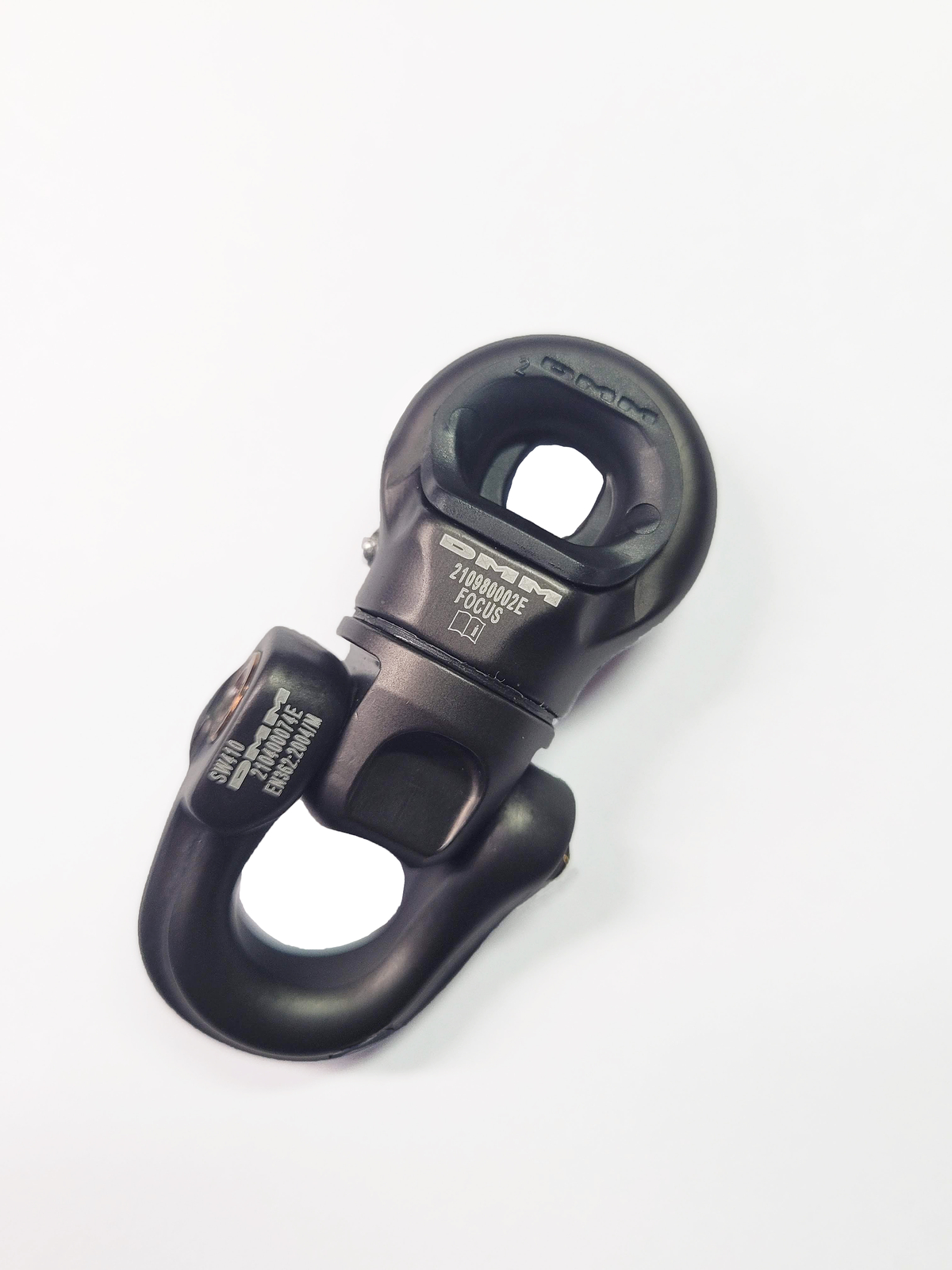

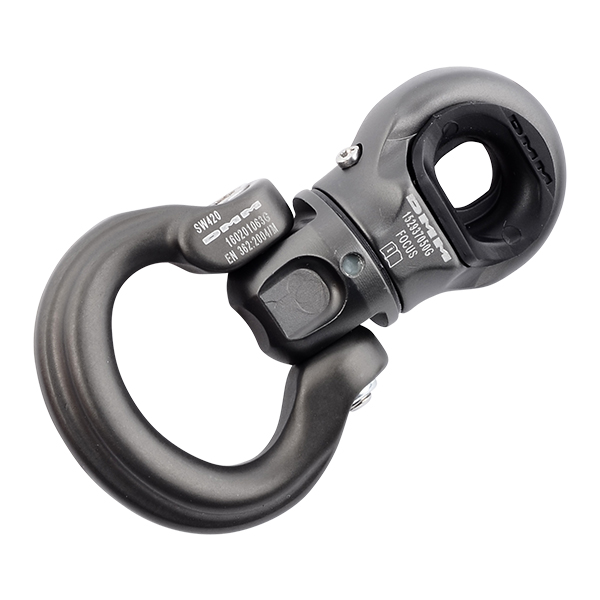

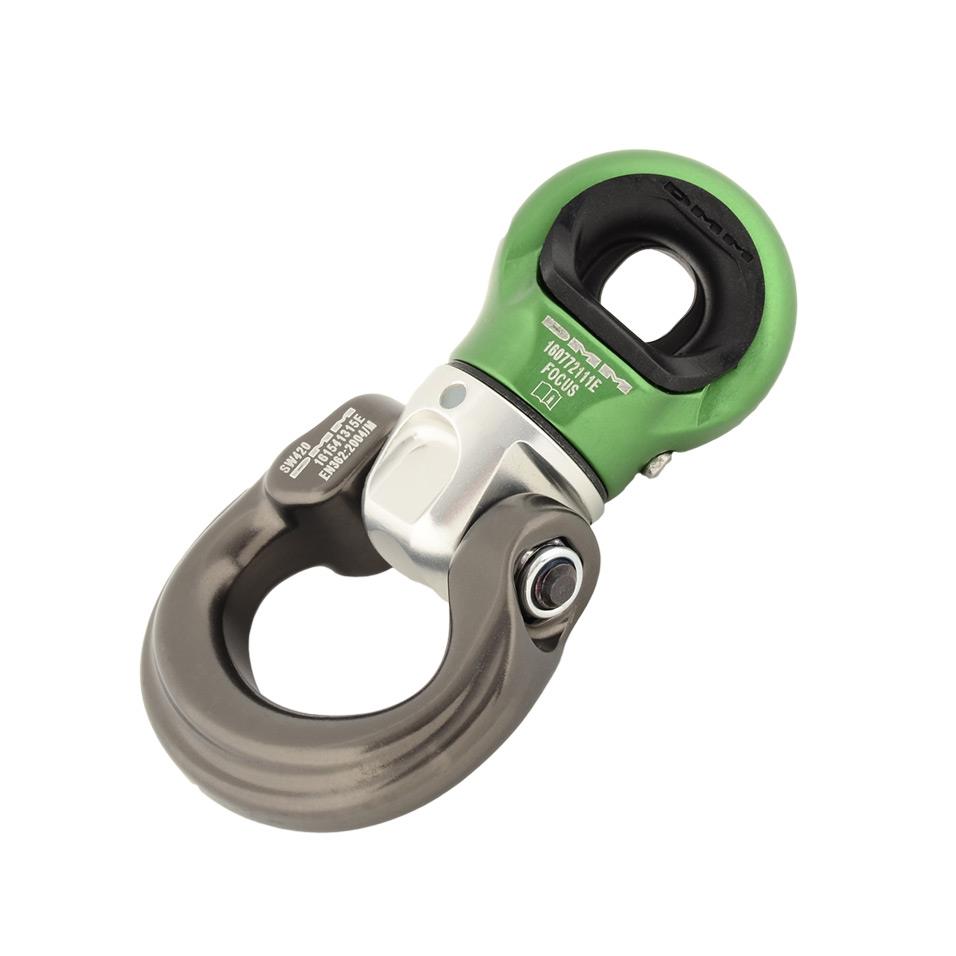

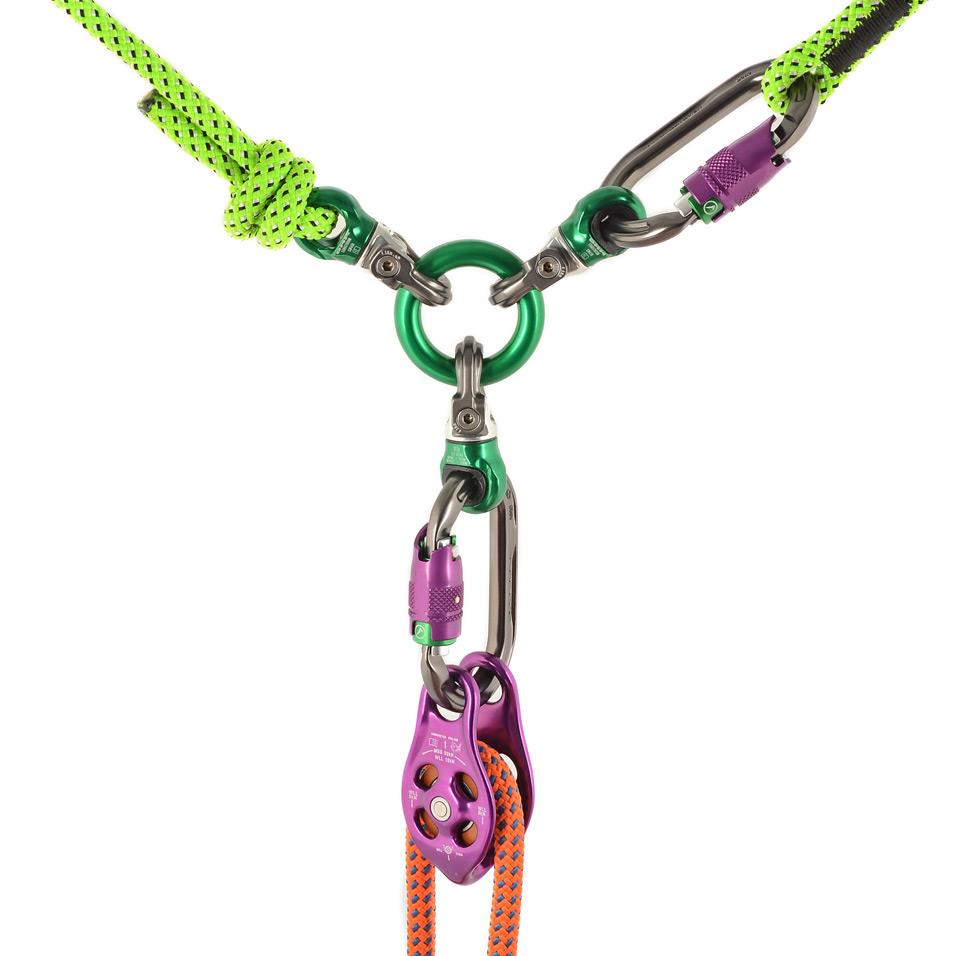

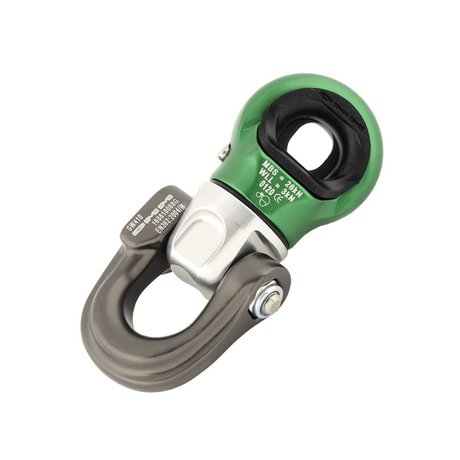

Retro-fittable swivel convertors. The two way locking spindle in the shackle allows connection to fixed loops such as wire strops, rigging plates, and harness bridges. The fixed eye can be clipped (with a Prest-in configuration aid if needed), spliced in, swaged in, etc. as required. Available in two shackle sizes depending on the loading requirements. The small D shaped shackle keeps single attachments neat and predictable whereas the increased size of the bow-shaped shackle allows complex set ups to be achieved by catering for loading across the shackle.
Features:
• Textile-friendly
• Hot forged aluminium shackles and CNC'd swivels
• User maintainable grease port for bearing longevity
• Double locking high tensile stainless steel axles for durability
• Roller thrust bearing for smooth efficiency
• Shackle uses 4mm and 2mm Allen keys to ensure secure locking
Specifications:
Dimensions
• Small - 76.5 x 34.5 x 22mm
• Large - 82 x 47.5 x 22mm
Weight
• Small - 64g
• Large - 72g
Certifications:
• DMM QAP91
Specifications
Part Number: SW440 Weight: 0.1 lbs.
