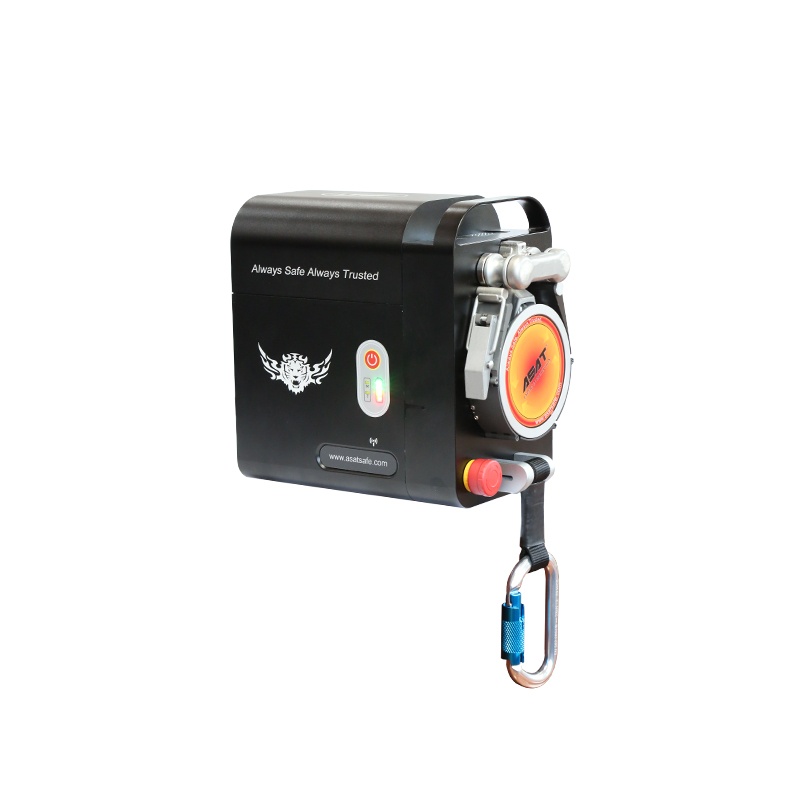

Mini power ascender, gross weight of 10.5kg, which is compacted and can be stored in a backpack.
Maximum load of 180kg, stepless speed regulation, 150m remote control.
Swappable battery.
Running in any direction, including vertically, horizontally and in high angles.
Dimensions: 26cm*16cm*24cm.
Applications:
• Wind turbine blade maintenance
• Power grid maintenance
• Power plant maintenance
• Bridge inspection
• High buildings cleaning and maintenance
• Rope: Semi-static rope of 11mm diameter conforming to EN1891 A
• Rated working load: 140kg
• Working load limit: 180kg
• Operation mode: Ascending and descending vertically/traversing horizontally/traversing inclinedly
• Ascending speed: 0-30m/min (Stepless speed)
• Descending speed: 0-40m/min (Stepless speed)
• Manually descending speed: 0-40m/min (Stepless speed)
• Swappable battery: √
• Weight: 10.5kg
• Running distance (with standard battery): 400m@120kg travel capacity of ascending and descending alternatively, 160m@120kg travel capacity of ascending continuously"
• Remote control range(L): 0~150m（open space）
• Charging time: ＜ 60min
• Ingress Protection: IP54
• Operating temperature range: -20℃~+60℃
Specifications
ASAT Mini Power Ascender Kit (w/2 Batteries)
Part Number: ACE-22 Weight: 18.7 lbs.
