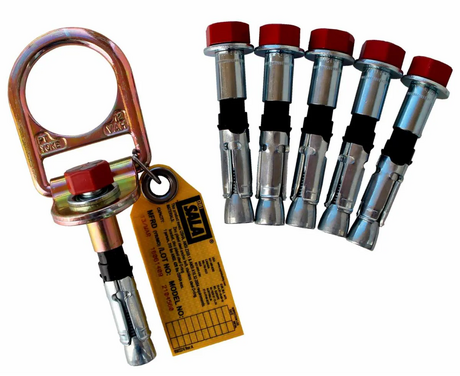

3M™ DBI-SALA Concrete D-ring Anchor & Bolt Kit

2104561

Description
Ask a Question
Reviews

3M™ DBI-SALA Concrete D-ring anchor for 11/16 in., 18 mm or 3/4 in. hole with swiveling D-ring.

3M's anchorage connectors are built from quality materials providing high strength and durability to stand up to the toughest environments. Anchorage connectors are the foundation of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.

Highlights
• High strength construction
• Compact and lightweight design
• Rugged and corrosion resistant
• Installs into 11/16 in., 18 mm or 3/4 in. concrete hole
• Use vertically in wall or horizontally in ceiling
• Install as temporary or permanent anchor

Details
• Anchor Install Type: Permanent & Reusable
• Attachment Type: Screw
• Connected Safety ID Equipped: No
• Dimensions: 5.70x3.00x4.40in
• Install Type: Reusable or Permanent
• Material: Zinc Plated Steel
• Product Colour: Silver
• Product Type: Concrete D-ring Anchor
• Weight (Imperial): 3.5 lb
• Weight Capacity: 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
• Weight Capacity (Imperial): 310 lb
• Weight Capacity (Metric): 141 kg
